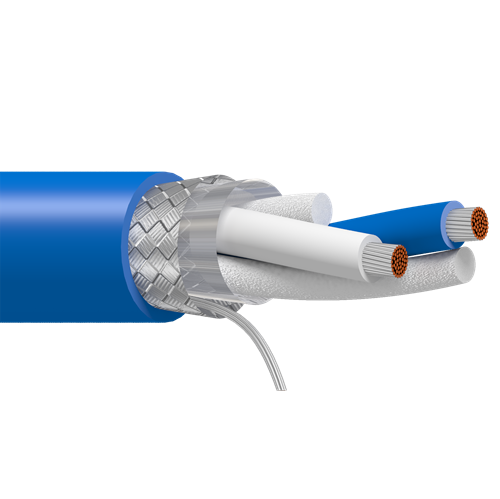

Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Roll over image to Zoom
Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9463
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$2.70 /FT
$2.70 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joseph Bernadt
Good Business

Good Business to order from. Quick, correct, and professional. Also constantly notifying me of where the order is at in what stage

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(55%) Shield, Blue PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.0755 in (1.92 mm)

Outer Shield:

• Outer Shield Type Tape, Bi-Laminate (Alum+Poly) Material, Coverage [%] 100%, Drainwire Type 20 AWG (7x28) TC

• Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.238 in (6.05 mm)
• Overall Cable Diameter (Nominal): 0.238 in (6.05 mm)
• Outer Jacket1: Jacket OD +/- 0.003

Standards:

• Impedance: 78 Ohm
• Operating Temperature: -40°C to +80°
• Voltage Rating: 300 V RMS (UL AWM Style 2464, NEC Type CM/CL2)

Applications:

• harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC
processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 9463

Manufacturer Equivalents
Alpha Wire : Blue : M4154
Belden : Blue : 9463 J221000
General Cable : Blue : C8001
Omni Cable :  Blue : BEL9463
Wirexpress : Blue : B9463
Omni :  Blue : BEL9463


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
