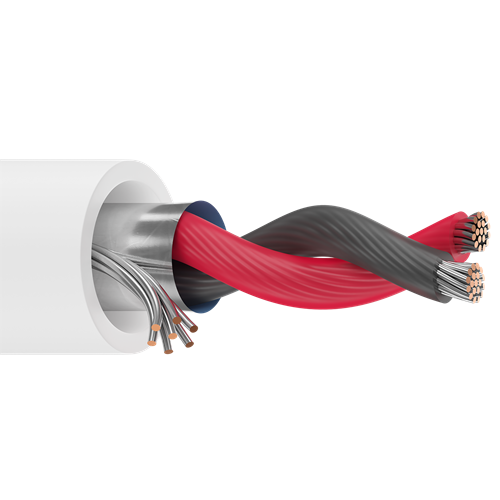

Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable

Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable
Roll over image to Zoom
Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC82760
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$3.04 /FT
$3.04 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Neil Sorensen

Cable is pricey and was able to have it cut to length for what I needed rather than have to by a thousand foot spool and blow my budget. Cable shipped in 4 days only comment would be you need better communication I never got shipping notification and tracking just said it being processed, had to call to find out it had already been delivered.

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable

Description:

Electronic Cable, 2 Conductor 18 AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.146 in (3.71 mm)
• Overall Cable Diameter (Nominal): 0.146 in (3.71 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Cable Type: Multi-Conductor, 1 twisted pair
• Part Number: 82760

Manufacturer Equivalents
Alpha Wire : Natural : M244825
Belden : Natural : 82760 8771000
General Cable : Natural : C8123
Omni Cable :  Natural : BEL82760
Wirexpress : Natural : B82760
Omni :  Natural : BEL82760

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
