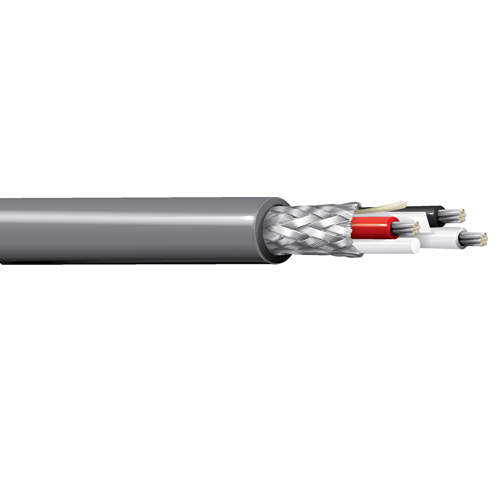

Belden 8643 30 AWG 3 Conductor 7x38 Stranding Tinned Copper 200V Electronic Cable

Name: Belden 8643 30 AWG 3 Conductor 7x38 Stranding Tinned Copper 200V Electronic Cable
Brand: Belden Cable
SKU: NNC8643
Price: 4.77 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8643

Select a Gauge

Belden 8643 30 AWG 3 Conductor 7x38 Stranding Tinned Copper 200V Electronic Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.77 /FT
Sale price: $4.77 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8643 30 AWG 3 Conductor 7x38 Stranding Tinned Copper 200V Electronic Cable

Description:

Electronic, 3 Conductor 30 AWG (7x38) Tinned Copper, PP Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.006 in (0.15 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Tinned Copper Braid Shield (95% coverage)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.096 in (2.4 mm)
• Paper Tape

Standards:

• Voltage Rating: 200 V.
• Operating Temperature: -20°C to +105°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
