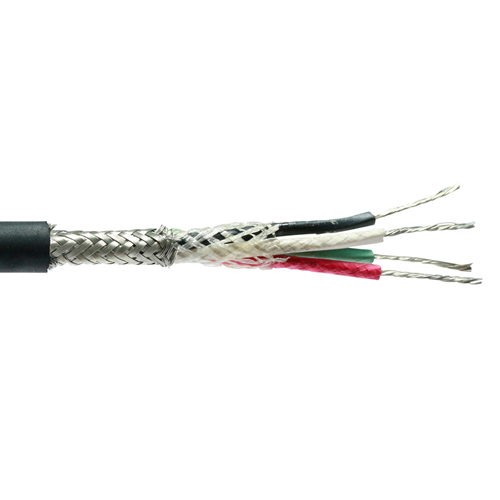

Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable

Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable
Roll over image to Zoom
Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8403
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$4.26 /FT
$4.26 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 3 Conductor 20 AWG (19 x 32) Tinned Copper (High conductivity), PE Insulation, Rayon Braid, 90% Tinned Copper Braid Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.069 in (1.8 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 90%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.244 in (6.20 mm)
• Overall Cable Diameter (Nominal): 0.244 in (6.20 mm)

Standards:

• Voltage Rating: 600 V
• Operating Temp: -20°C to +80°C

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio

Specifications:

• Size (AWG): 20
• No. of Conductor: 3
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 8403

Manufacturer Equivalents
Alpha Wire : Gray : 1713
Anixter : Gray : B8403
Belden : Gray : 8403 0601000
Wirexpress : Gray : B8403

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
