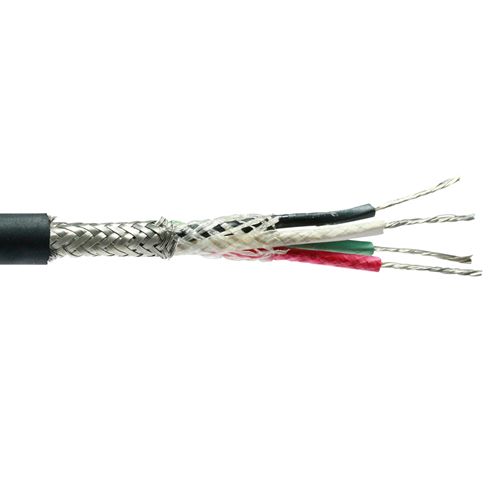

Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable
Roll over image to Zoom
Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8425
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$8.10 /FT
$8.10 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8425 20 AWG 5 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 5 Conductor 20 AWG (26 x 34) Tinned Copper (High Conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket, Flexible.

Insulation:

• Element: Conductor(s)
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type Braid: Rayon Material, Coverage 85%

• Shield Type Braid: Tinned Copper (TC) Material, Coverage 85%

• 85% coverage tinned copper braid shield

Outer Jacket:

• Separator: Cotton Serve
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.318 in (8.08 mm)
• Overall Cable Diameter (Nominal): 0.318 in (8.08 mm)

Standards:

• Voltage Rating: 600 V RMS.
• Impedance: 52 Ohm.
• Operating Temperature: -50°C to +90°C

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:

• Size (AWG): 20
• No. of Conductor: 5
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Cable Type: Microphone, Multi-Conductor
• Part Number: 8425

Manufacturer Equivalents
Anixter : Black : B8425
Belden : Black : 8425 010250
General Cable : Black : C1308
Wirexpress : Black : B8425

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
