Belden 3079A 22 AWG 1 Pair Solid Bare Copper 150 Ohm Profibus Cable

Name: Belden 3079A 22 AWG 1 Pair Solid Bare Copper 150 Ohm Profibus Cable
Brand: Belden Cable
SKU: NNC3079A
Price: 3.99 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC3079A

Select a Gauge

Belden 3079A 22 AWG 1 Pair Solid Bare Copper 150 Ohm Profibus Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $3.99 /FT
Sale price: $3.99 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

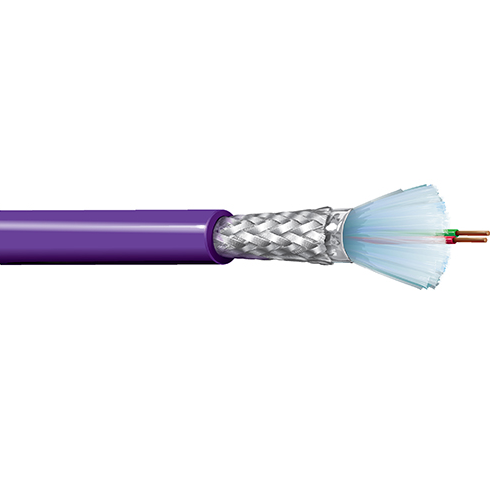

Belden 3079A 22 AWG 1 Pair Solid Bare Copper 150 Ohm Profibus Cable

Description:

Profibus, 1 Pair 22 AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, PLTC CMG AWM 20201 SUN RES Profibus DP.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Insulation Diameter: 0.099 in (2.5 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.043 in (1.1 mm)
• Nom. Diameter: 0.315 in (8.00 mm)
• Overall Cable Diameter (Nominal): 0.315 in (8.00 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.010

Standards:

• Temperature Range: Operating range from -30°C to +75°C.
• Impedance: Nominal characteristic impedance of 150 Ohms.
• Voltage Rating: 300 V (CMG, PLTC) and 600 V (UL AWM 20201).

Applications:

• harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 3079A

Manufacturer Equivalents
Alpha Wire :	Purple : 6462
Belden :	Purple : 3079A 0071000
Omni Cable :	Purple : B3079A
Wirexpress :	Purple : BEL3079A
Omni :	Purple : BEL9841
