Belden 8418 20 AWG 8 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Name: Belden 8418 20 AWG 8 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable
Brand: Belden Cable
SKU: NNC8418
Price: 12.79 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8418

Select a Gauge

Belden 8418 20 AWG 8 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $12.79 /FT
Sale price: $12.79 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

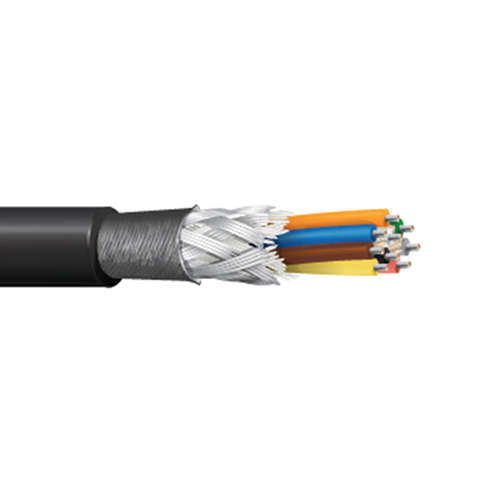

Belden 8418 20 AWG 8 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 8 Conductor 20 AWG (26 x 34) Tinned Copper (High Conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket, Flexible.

Insulation:

• Element: Conductor(s)
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type Braid: Rayon Material, Coverage 85%

• Shield Type Braid: Tinned Copper (TC) Material, Coverage 85%

• Double Braid (Rayon and Tinned Copper) with 85% coverage

Outer Jacket:

• Separator: Cotton Serve
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.381 in (9.68 mm)
• Overall Cable Diameter (Nominal): 0.381 in (9.68 mm)

Standards:

• Voltage Rating: 600 V.
• Impedance: 52 Ohm.
• Operating Temperature: -50°C to +90°C

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:

• Size (AWG): 20
• Number of Conductor: 8
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Cable Type: Microphone, Multi-conductor
• Part Number: 8418

Manufacturer Equivalents
Anixter :	Black : B8418
Belden :	Black : 8418 010250
General Cable :	Black : C1313
Wirexpress :	Black : B8418
