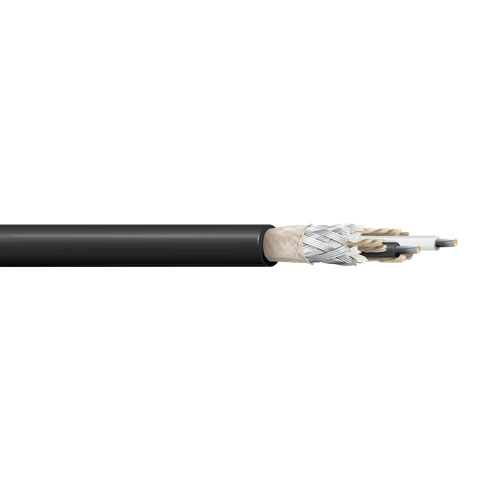

Belden 8412 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Name: Belden 8412 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable
Brand: Belden Cable
SKU: NNC8412
Price: 2.44 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8412

Select a Gauge

Belden 8412 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $2.44 /FT
Sale price: $2.44 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8412 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 2 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 85%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• 85% coverage tinned copper braid shield, plus a rayon braid and cotton wrap for added durability and noise rejection.

Outer Jacket:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.262 in (6.65 mm)
• Overall Cable Diameter (Nominal): 0.262 in (6.65 mm)

Standards:

• Voltage Rating: 600 V.
• Characteristic Impedance: 67 Ohm.
• Operating Temperature: -50°C to +90°C.

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 8412

Manufacturer Equivalents
Anixter :	Black : B8412
Belden :	Black : 8412 0101000
General Cable :	Black : C1302
Wirexpress :	Black : B8412
