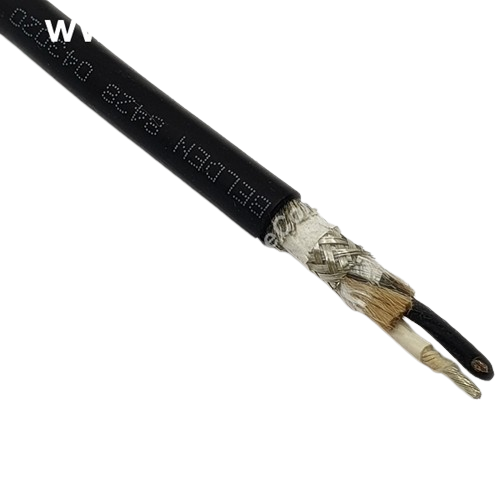

Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600V Microphone Cable

Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600V Microphone Cable
Roll over image to Zoom
Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600V Microphone Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8428
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$4.75 /FT
$4.75 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 2 Conductor, 18 AWG stranded (41x34) High-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CPE jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.0235 in (0.597 mm)
• Nom. Insulation Diameter: 0.1 in (2.5 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 85%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Inner Rayon braid wrap, Outer tinned copper braid shield (85% coverage).

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter:  0.29 in (7.4 mm)
• Cotton Serve

Standards:

• Voltage Rating: 600 V.
• Operating Temperature: -30°C to +60°C.
• Impedance: 67 Ohm characteristic impedance (nominal).

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 41x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 8428

Manufacturer Equivalents
Anixter : Black : B8428
Belden : Black : 8428 0101000
Wirexpress : Black : B8428

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
