Belden 9452 24 AWG 2 Conductor 19x36 Stranding Tinned Copper 200V Microphone Cable

Name: Belden 9452 24 AWG 2 Conductor 19x36 Stranding Tinned Copper 200V Microphone Cable
Brand: Belden Cable
SKU: NNC9452
Price: 1.19 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9452

Select a Gauge

Belden 9452 24 AWG 2 Conductor 19x36 Stranding Tinned Copper 200V Microphone Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $1.19 /FT
Sale price: $1.19 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

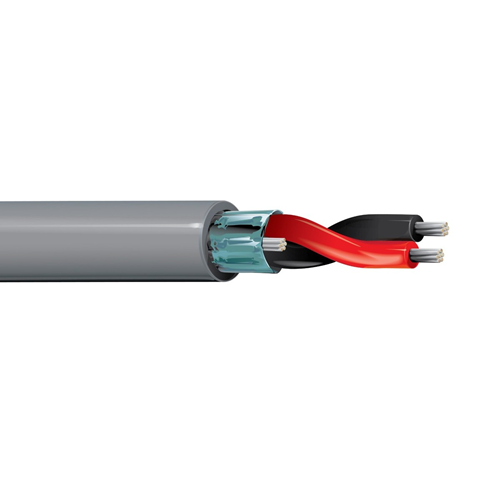

Belden 9452 24 AWG 2 Conductor 19x36 Stranding Tinned Copper 200V Microphone Cable

Description:

Microphone Cable, 2 Conductor 24 AWG (19 x 36) Tined Copper (High conductivity), PE Insulation, Noise reducing tape, Overall Beldfoil Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Outer Shield:

• Shield Type: Tape
• Material: Textile (Conductive)
• Coverage: 100%
• Drainwire Type: 24 AWG (19x36) TC

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Beldfoil (aluminum-laminated polyester film) with 100% coverage and a 24 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.135 in (3.43 mm)
• Overall Cable Diameter (Nominal): 0.135 in (3.43 mm)

Standards:

• Voltage Rating: 200 V.
• Temperature Range: -40°C to +75°C.
• Impedance: 56 Ohm

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments

Specifications:

• Size (AWG): 24
• No. of Conductor: 2
• Stranding: 19x36
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 9452
