Belden 8407 16 AWG 4 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable

Name: Belden 8407 16 AWG 4 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable
Brand: Belden Cable
SKU: NNC8407
Price: 10.02 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8407

Select a Gauge

Belden 8407 16 AWG 4 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $10.02 /FT
Sale price: $10.02 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8407 16 AWG 4 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable

Description:

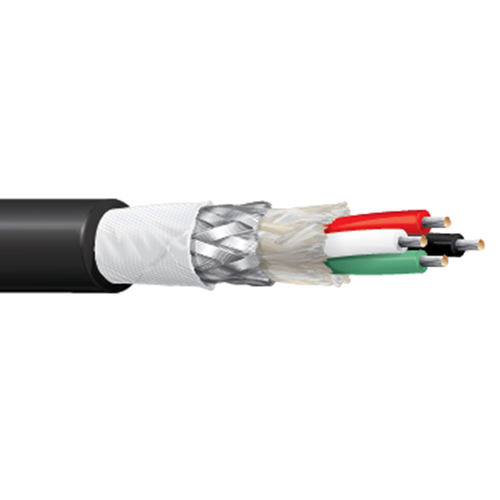

Microphone Cable, Star Quad, 4 Conductor 16 AWG (65 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, CPE Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Insulation Diameter: 0.12 in (3.0 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 20%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• A multi-layer shield system consisting of a rayon braid (20% coverage), an 85% tinned copper braid shield, and a cotton serve.

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.043 in (1.1 mm)
• Nom. Diameter: 0.416 in (10.6 mm)
• Overall Cable Diameter (Nominal): 0.416 in (10.6 mm)

Standards:

• Voltage Rating: 600 V.
• Nom. Impedance: 44 Ohm
• Operating Temperature Range: -30°C to +60°C.
• Capacitance: Nominal capacitance of 30 pF/ft (conductor to conductor).

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments

Specifications:

• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 65x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Part Number: 8407
