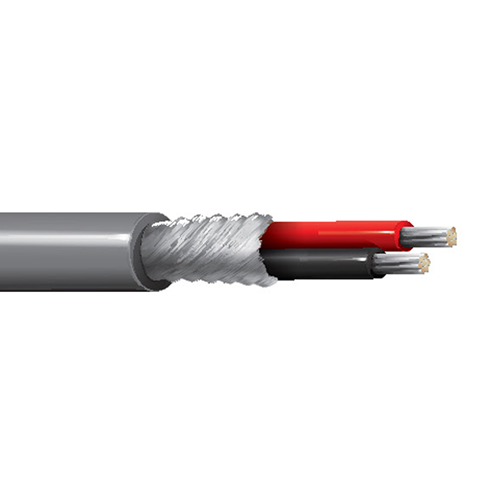

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable
Roll over image to Zoom
Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8416
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$5.36 /FT
$5.36 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8416 25 AWG 2 Conductor 7x33 Stranding Audio And Instrumentation Cable

Description:

Dual Channel, 25 AWG stranded (7x33) Tinned Copper/Tinned Copper Covered Steel conductor, polyethylene insulation, individual TC spiral wrapped shield (90% coverage), PVC jacket, polarity rib on red conductor.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.058 in

Inner Shield:

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 90%

Outer Shield:

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.106 x 0.213 in

Standards:

• Nominal Characteristic Impedance: 44 Ohm.
• Operating Temperature Range: -20°C to +80°C.

Specifications:

• Size (AWG): 25
• Stranding: 7x33
• Number of Conductor: 2
• Nominal Diameter: 0.021 in
• Material: TC+TCCS - Tinned Copper+ Tinned Copper Covered Steel (High
Conductivity)
• Part Number: 8416

Manufacturer Equivalents
Anixter : Gray : B8416
Belden : Gray : 8416 008250
Wirexpress : Gray : B8416




*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
