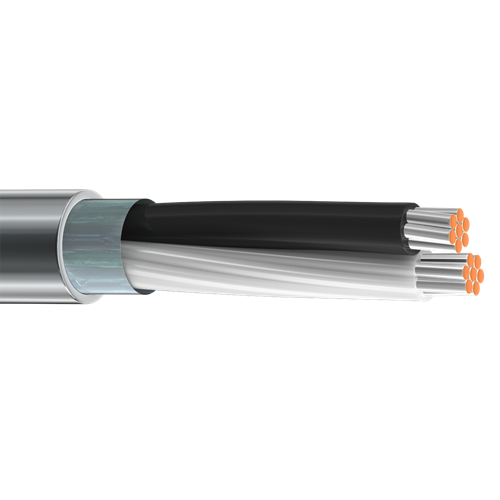

Belden 8641 24 AWG 2 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable

Belden 8641 24 AWG 2 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable
Roll over image to Zoom
Belden 8641 24 AWG 2 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8641
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8641 24 AWG 2 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.16 /FT
$1.16 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8641 24 AWG 2 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 24 AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.168 in (4.27 mm)
• Overall Cable Diameter (Nominal): 0.168 in (4.27 mm)

Standards:

• Voltage Rating: 300 V (UL AWM 2092, CM)
• Operating Temperature Range: -20°C to +80°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 24
• No. of Conductor: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 8641

Manufacturer Equivalents
Alpha Wire : Chrome : 2400C
Belden : Chrome : 8641 0601000
General Cable : Chrome : C2513A
Omni Cable :  Chrome : BEL8641
Wirexpress : Chrome : B8641
Omni :  Chrome : BEL8641

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
