Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Name: Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable
Brand: Belden Cable
SKU: NNC9729
Price: 3.22 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9729

Select a Gauge

Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $3.22 /FT
Sale price: $3.22 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

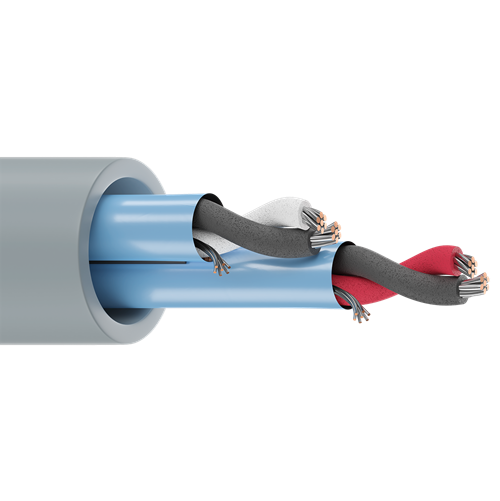

Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, individually Beldfoil shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Diameter: 0.266 in (6.76 mm)
• Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)

Standards:

• Voltage Rating: 300 V
• Impedance: Nominal characteristic impedance of 100 Ohm.
• Temperature Rating: Can operate in a temperature range of -20°C to +80°C.

Applications:

• RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9729

Manufacturer Equivalents
Alpha Wire :	Chrome : M39249
Belden :	Chrome : 9729 0601000
General Cable :	Chrome : C0910A
Omni Cable :	Chrome : BEL9729
Wirexpress :	Chrome : B9729
