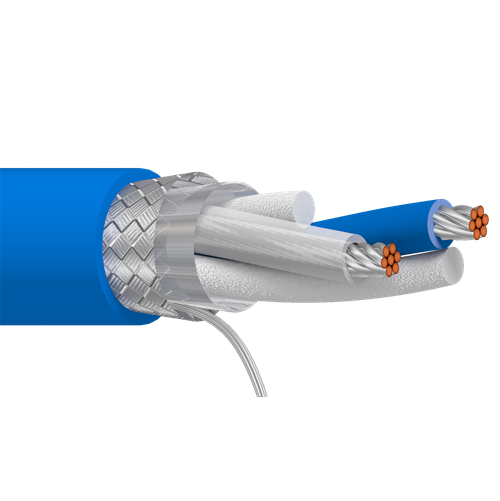

Belden 89463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Name: Belden 89463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Brand: Belden Cable
SKU: NNC89463
Price: 8.77 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC89463

Select a Gauge

Belden 89463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $8.77 /FT
Sale price: $8.77 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 89463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, FEP Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(76%) Shield, Blue FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0175 in (0.445 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 76%

• Overall Beldfoil (100% coverage) plus a tinned copper braid shield (76% coverage).

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.203 in (5.16 mm)
• Overall Cable Diameter (Nominal): 0.203 in (5.16 mm)

Standards:

• Impedance: 78 Ohms
• Voltage Rating: 300 V.
• Temperature Rating: Operating range from -70°C to +200°C (-94°F to +392°F)

Applications:

• extreme temp, exposure to oil and gasoline, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper

• Cable Type: Twinaxial (Blue Hose)
• Part Number: 89463

Manufacturer Equivalents
Belden :	Blue : 89463 0062500
Omni Cable :	Blue : BEL89463
Wirexpress :	Blue : B89463
Omni :	Blue : BEL89463
