Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable

Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable
Roll over image to Zoom
Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8422
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.22 /FT
$1.22 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Matt Stacy
Just as advertised

High quality cable, exactly as advertised.

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

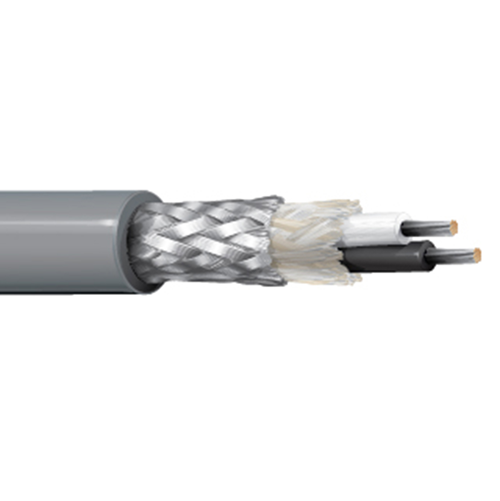

Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable

Description:

Microphone Cable, 2 Conductor 22 AWG (16 x 34) Tinned Copper (High conductivity), PE Insulation, 85% Tinned Copper Braid Shield, Cotton Braid, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.072 in (1.8 mm)

Outer Shield:

• Outer Shield Type Braid, Cotton Material, Coverage [%] 85%

• Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 85%

• Shield Type: Double Braid (tinned copper braid and cotton braid)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.029 in (0.74 mm)
• Nom. Diameter: 0.231 in (5.87 mm)
• Overall Cable Diameter (Nominal): 0.231 in (5.87 mm)

Standards:

• Voltage Rating: 1000 V
• Nom. Impedance: 90 Ohm
• Operating Temp: -40°C to +80°C
• Nom. Capacitance: 18 pF/ft (conductor to conductor)

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 16x34
• Conductor Material: TC - Tinned Copper (High Conductivity)
• Cable Type: Microphone/Instrument Cable, Multi-Conductor
• Part Number: 8422

Manufacturer Equivalents
Alpha Wire : Chrome : 1710
Belden : Chrome : 8422 0601000
General Cable : Chrome : C1322A
Omni Cable : Chrome : BEL8422
Wirexpress : Chrome : B8422
Omni : Chrome : BEL8422

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet

Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Matt Stacy
Just as advertised

High quality cable, exactly as advertised.

Related Categories

Belden multi conductor shielded audio control and instrumentation cable
From $0.46/FT

Related products

Belden 8405 20 AWG 5 Conductor 19x32 Stranding Tinned Copper Microphone Cable
$5.31
$5.31
Belden 8424 20 AWG 4 Conductor 26x34 Stranding Tinned Copper Microphone Cable
$4.33
$4.33
Belden 8454 18 AWG 4 Conductor 41x34 Stranding Tinned Copper Portable Cordage Cable
$6.07
$6.07
Belden 8471 16 AWG 2 Conductor 19x29 Stranding Tinned Copper Electronic Cable
$2.89
$2.89
Belden 8786 24 AWG 4 Conductor 22 AWG 2 Conductor Audio Control and Instrumentation Cable
$3.23
$3.23
Belden 9260 20 AWG 6 Conductor 7x28 Stranding Tinned Copper Electronic Cable
$9.45
$9.45
Belden 9460 18 AWG 1 Pair 16x30 Stranding Tinned Copper 300V Electronic Cable
$2.67
$2.67
Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
$2.70
$2.70
Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable
$3.22
$3.22

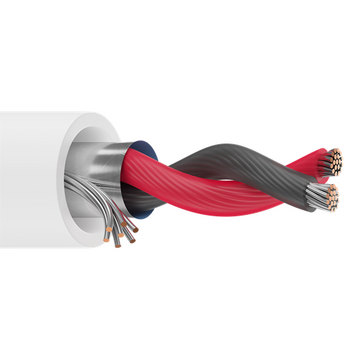

Belden 82760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable
