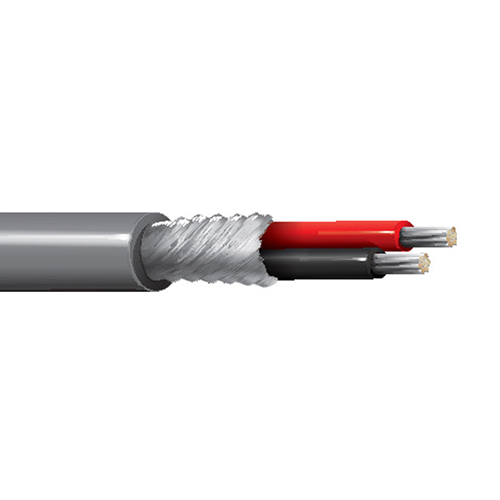

Belden 8780 16 AWG 1 Pair 19x29 Stranding Tinned Copper 300V Audio Cable
Description:
16 AWG stranded (19x29) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.105 in (2.67 mm)
Outer Shield:
• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 85%
• Tinned copper spiral-wrapped shield with approximately 85% coverage and an overall drain wire.
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.28 in
Standards:
• Voltage Rating: 300 V.
• Operating Temperature: -20°C to +60°C..
• Impedance: 37 Ohm
Applications:
• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Specifications:
• Size (AWG): 16
• No. of Pair: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Cable Type: Multi-conductor, 1 pair twisted.
• Part Number: 8780
• Size (AWG): 16
• No. of Pair: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Cable Type: Multi-conductor, 1 pair twisted.
• Part Number: 8780
|
Manufacturer Equivalents |
|
| Alpha Wire : | Chrome : 2260 |
| Belden : | Chrome : 8780 0601000 |
| General Cable : | Chrome : C2895A |
| Omni Cable : | Chrome : BEL8780 |
| Wirexpress : | Chrome : B8780 |
| Omni : | Chrome : BEL8780 |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
