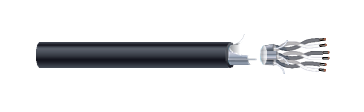

18 AWG 12C TC-ER SPOS Instrumentation Cables 600V 90°C

18 AWG 12C TC-ER SPOS Instrumentation Cables 600V 90°C

Applications:

TC-ER SPOS Instrumentation Cables are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference from both outside of the cable and from pair to pair is needed. The cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER SPOS Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.

 Also Known As:

18/12 Cable Tray, 18/12 Cable Tray Types, 18/12 Electrical Cable Tray, 18/12 wire cable tray, cable tray wire, 18/12  SPOS cable, 18/12 EPR Cable, 18/12 CPE Cable, 18/12 Shielded Tray Cable, 18/12 Pairs Cable, 18/12 Tray Instrument Cable, 18/12 Shielded Instrument Cable, 18/12 TC-ER cable

Standards:

• UL type TC-ER
• UL 62, 83, 1277, 1581
• IEEE 383 70,000 BTU flame test
• NEC Article 336, 392, 501, 725

Conductor:

Stranded soft drawn bare copper conductor, per ASTM B3 & B-8.

Insulation:

Polyvinyl Chloride (PVC) insulation with a nylon overcoat.

Jacket:

Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant.

Shielding:

Aluminum polyester foil with 100% coverage on each pair, with an overall aluminum polyester foil with 100% coverage with a tinned copper drain wire in contact with all shields.

Specification:
