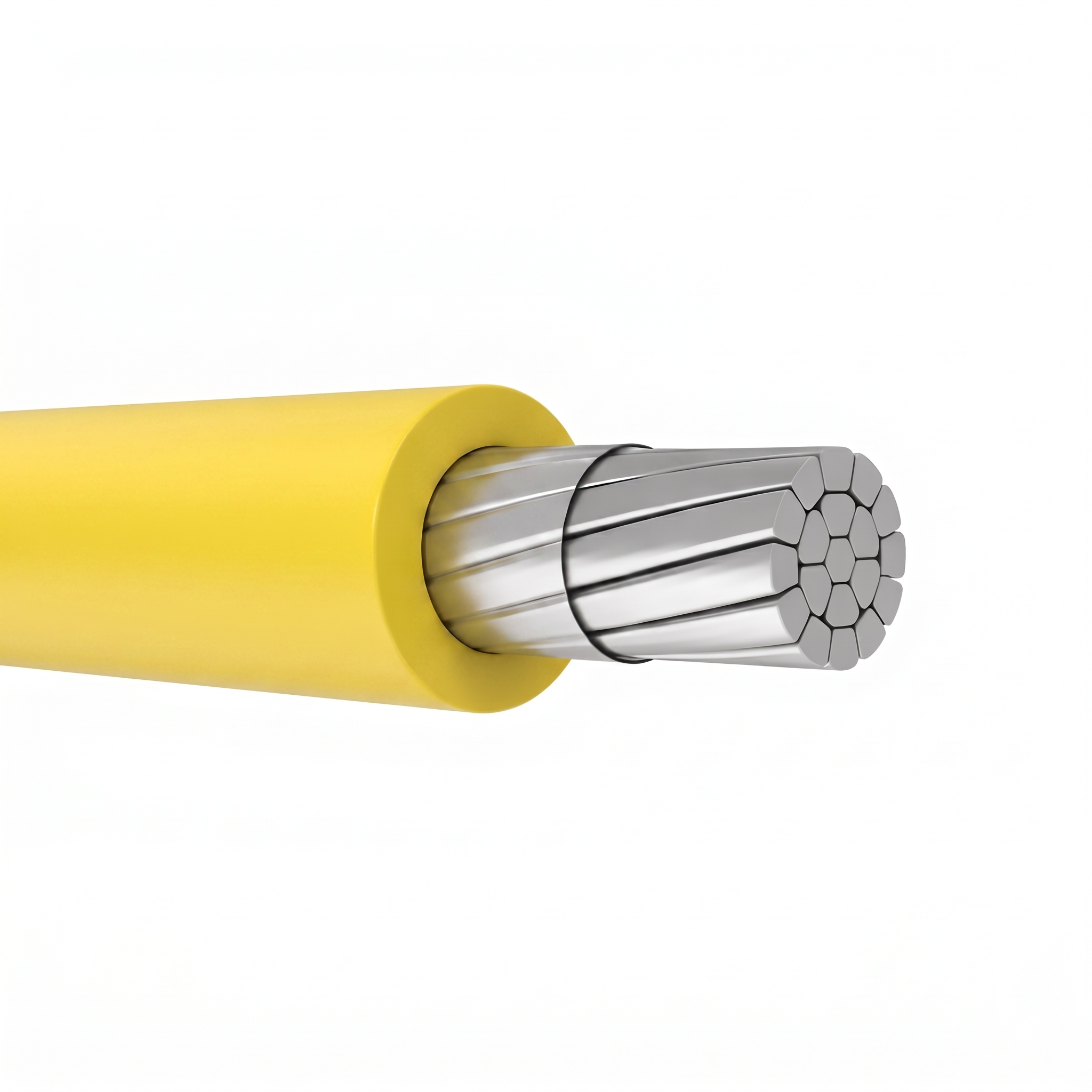

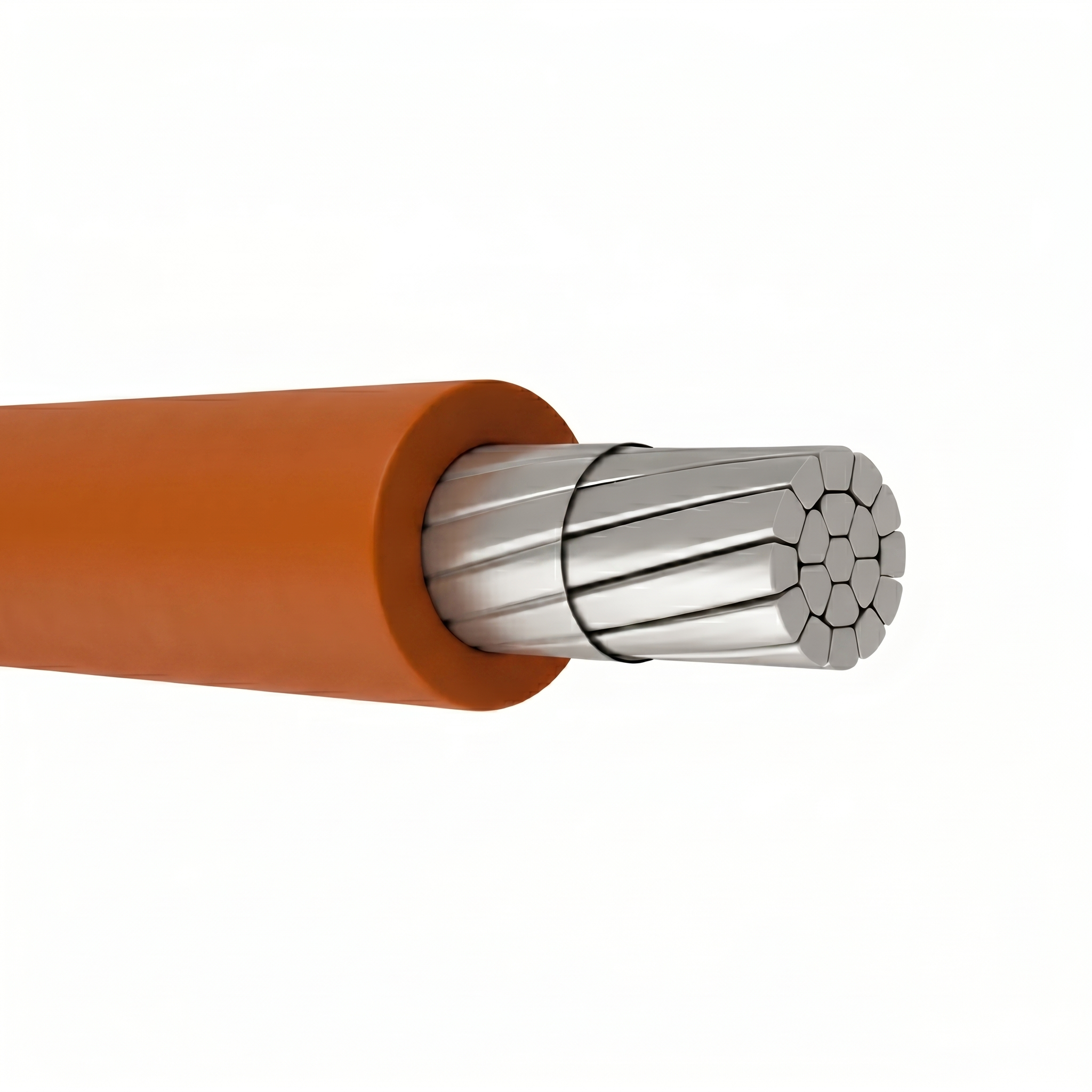

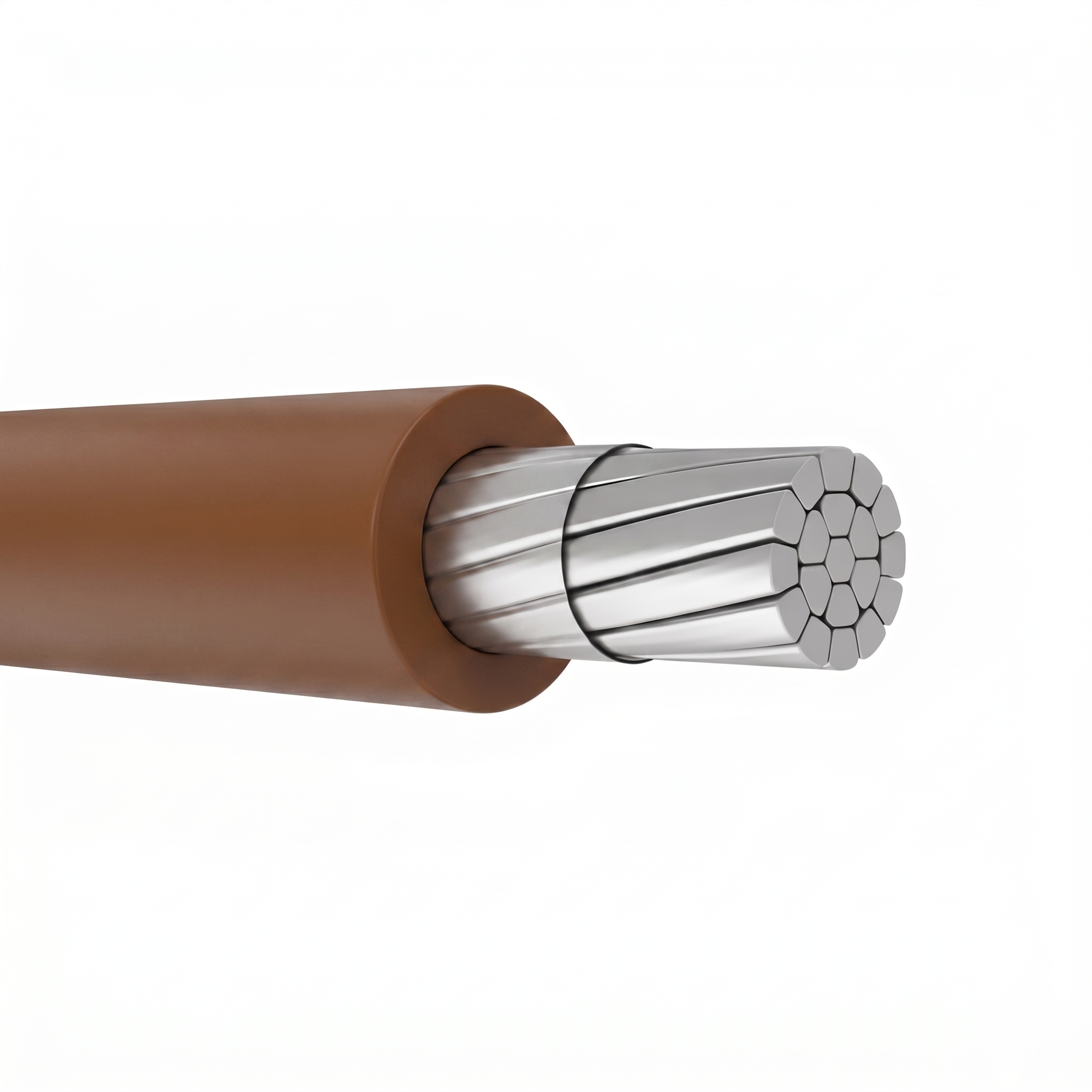

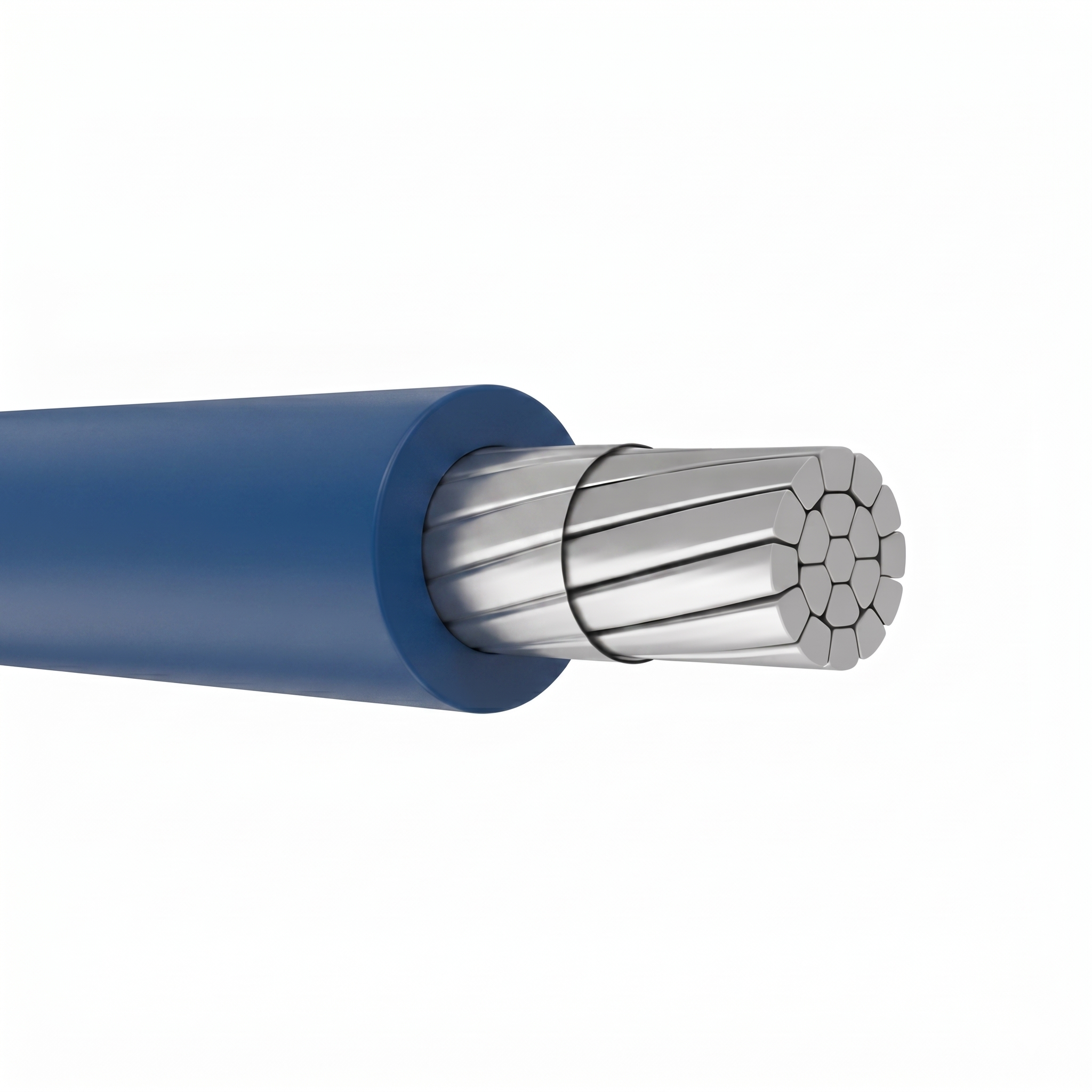

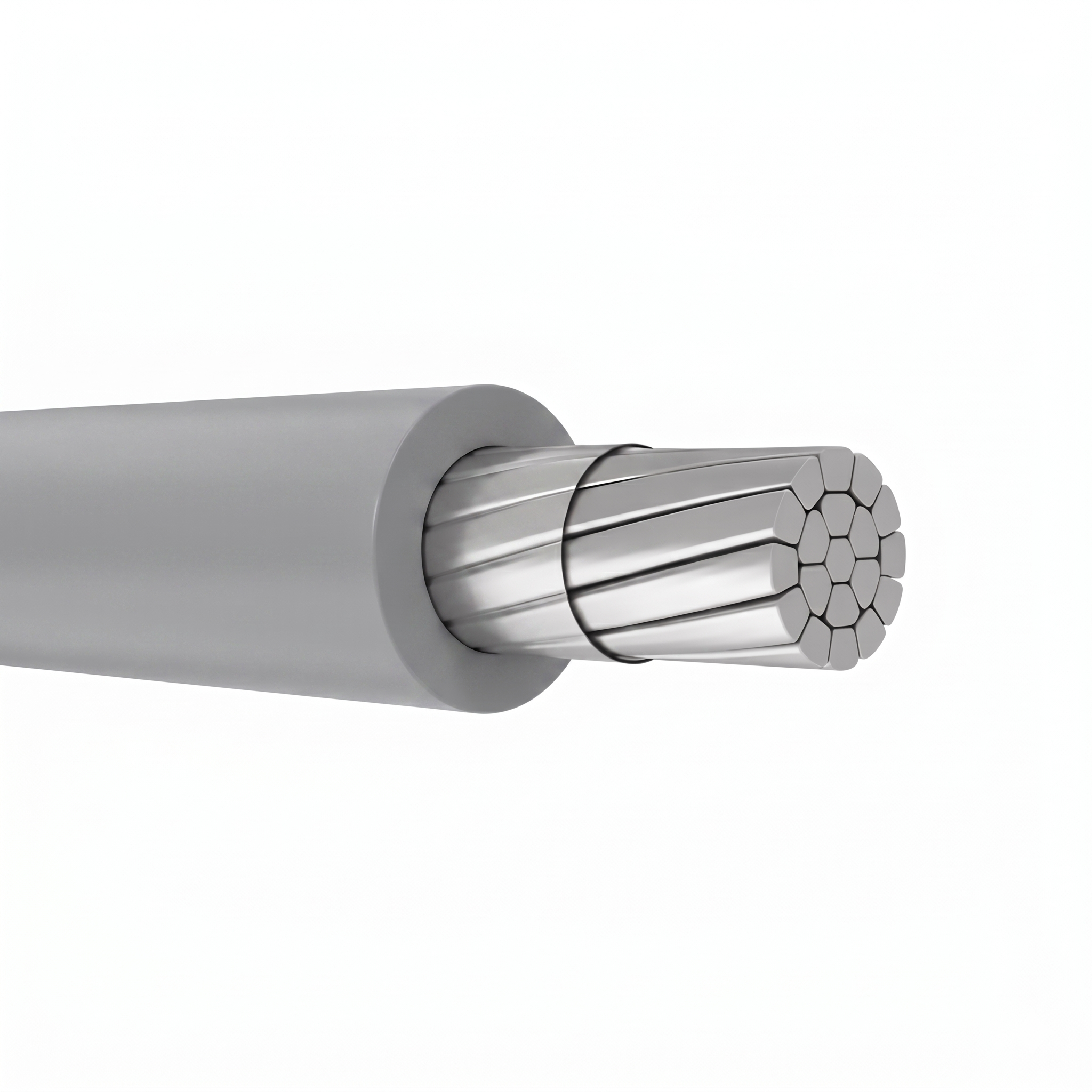

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

SKU: NNC28711X

Availability: IN STOCK, MINIMUM ORDER QUANTITY 100 FT

Price:
Regular price
$0.80
Sale price
$0.40 /FT 50% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sigmund Wu

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

D
Dennis
Fast service, good price

My purchase of aluminum cable was excellent. It was the best price I could find and fast delivery

S
Sidney Braverman

Life on Jupiter

B
Brion Dickens

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

A
Artur Manukyan

4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

4 AWG THHN THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Allowable Ampacity for 4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 75 Amps

Applications:

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

4 thhn cable, thwn cable, 4 awg thhn cable, 4 awg thwn cable, thhn aluminum, pvc insulated, 4 pvc insulated wire, 4 pvc insulated aluminium wire, 4 pvc sheathed cable, 4 pvc flexible cable.

Standards:

  • UL standard 83, 1685, CUL

  • CSA C22.2 No. 75

  • 1/0 & larger are rated for CT use

  • Requirements of the National Electrical Code

  • NEMA WC-70 construction requirements

  • ASTM standards B 800, B 801, B836

  • Federal Specification AA-59544

  • Sunlight resistant

  • RoHS Compliant

Construction

Conductors:

THHN / THWN-2 / T90 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Specifications:

  • Size AWG: 4

  • Stranding: 7

  • Conductor Diameter Inches: 0.213

  • Insulation Thickness Inches: 0.045

  • Jacket Thickness Inches: 0.006

  • O.D. Inches:  0.305

  • New Weight lb/1000FT: 68 lbs

  • Ampacity at 90°C: 75 Amps

Compatible with Manufacturer

Priority Wire & Cable : 4-01AL-THHN
Classic Wire & Cable : A4-01THHN
Southwire : Black : 56376901
Blue : 57383399
Green : 56221101
Red : 57354499
White : 57762899

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
