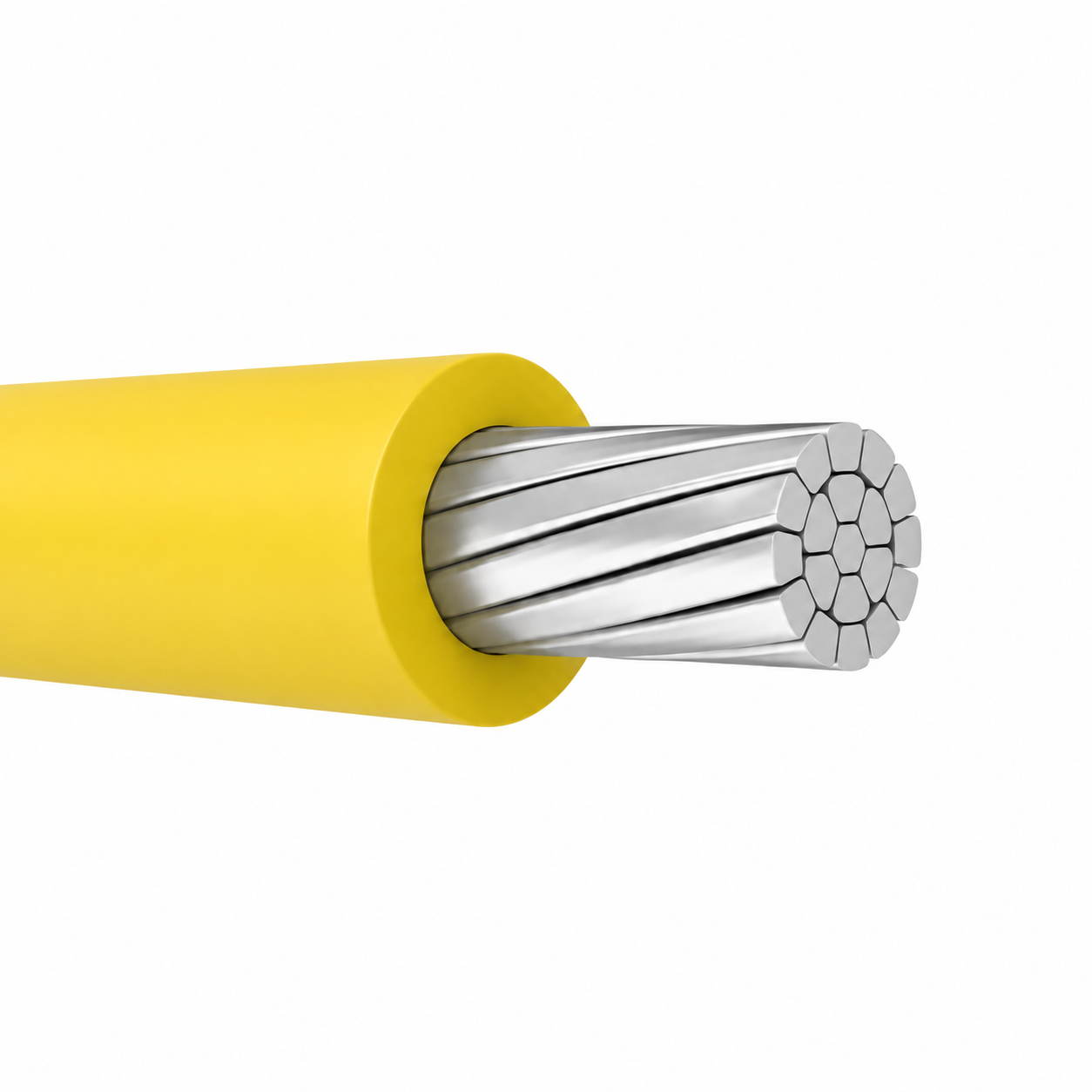

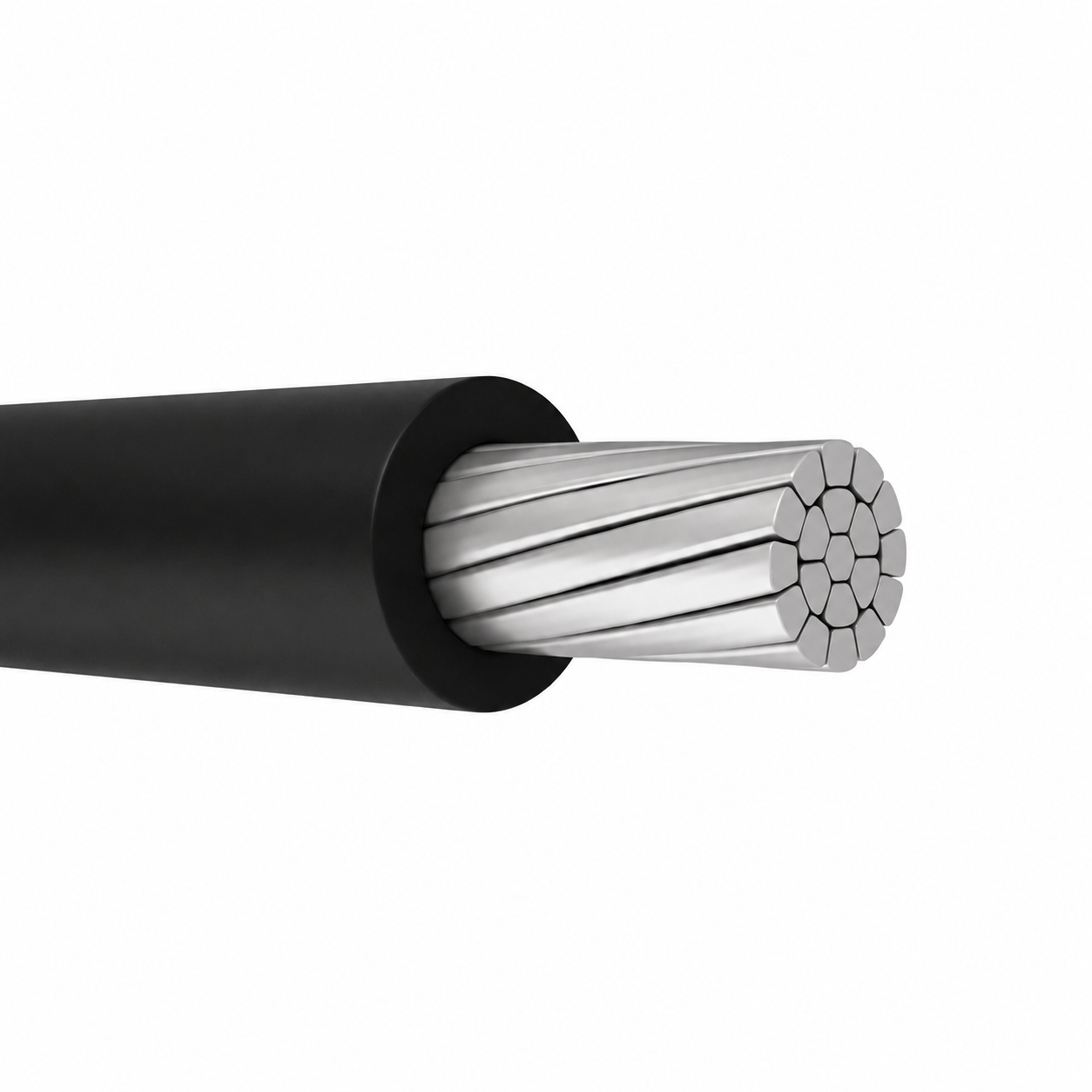

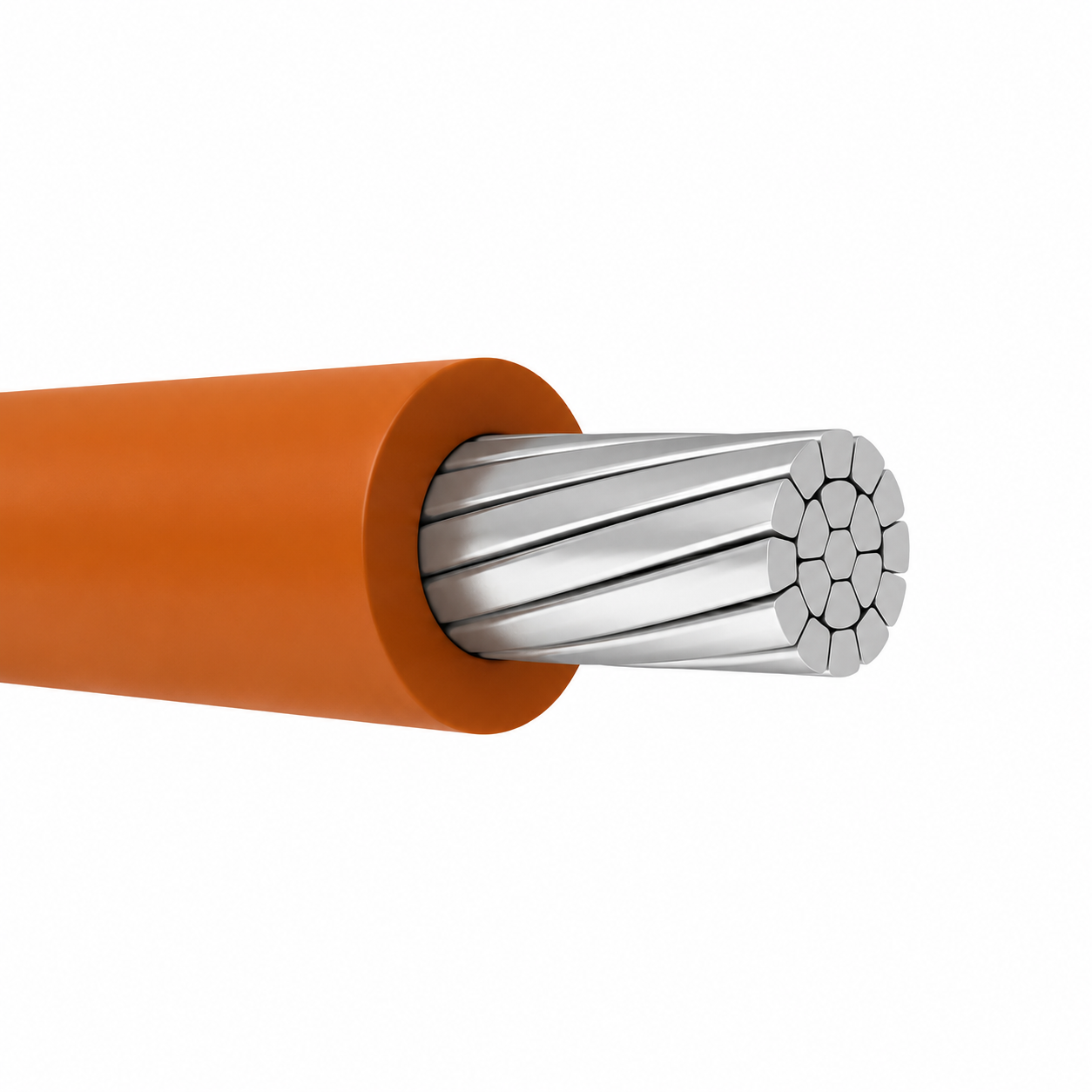

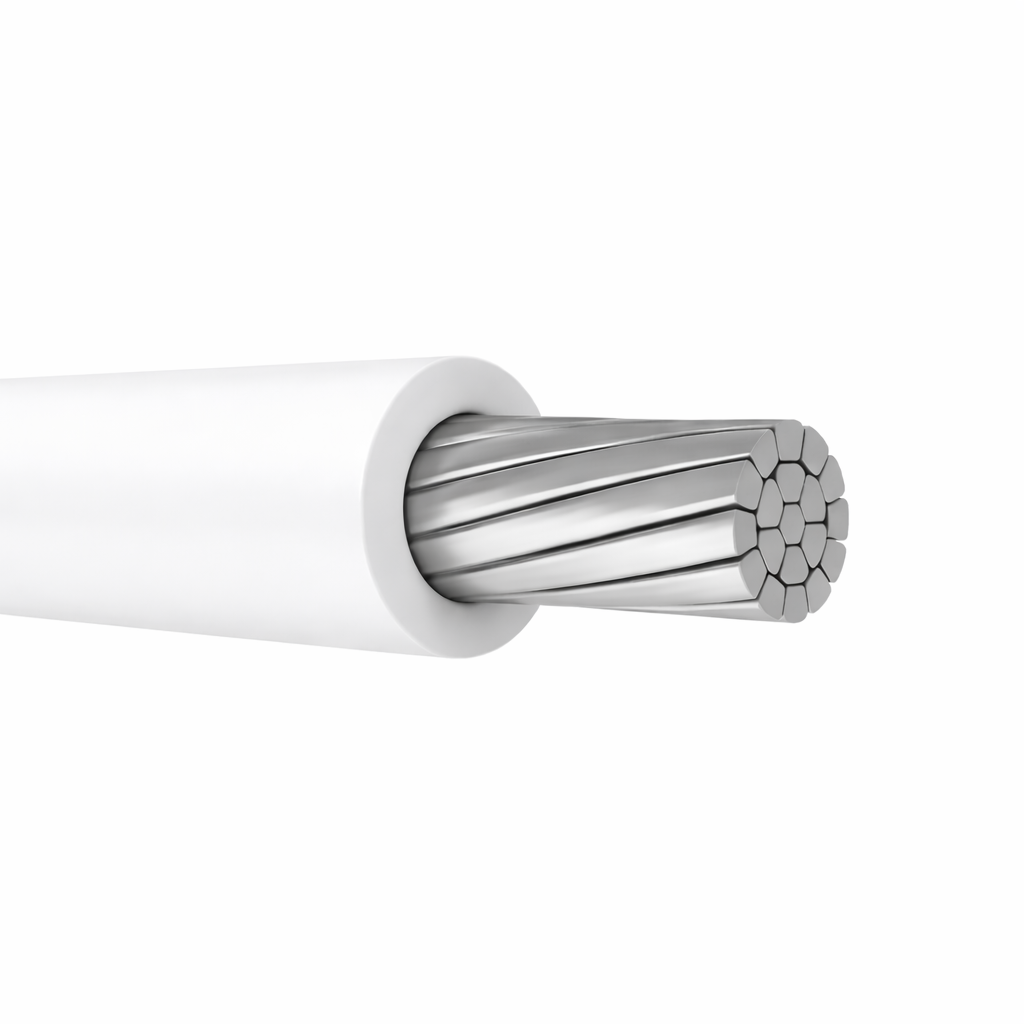

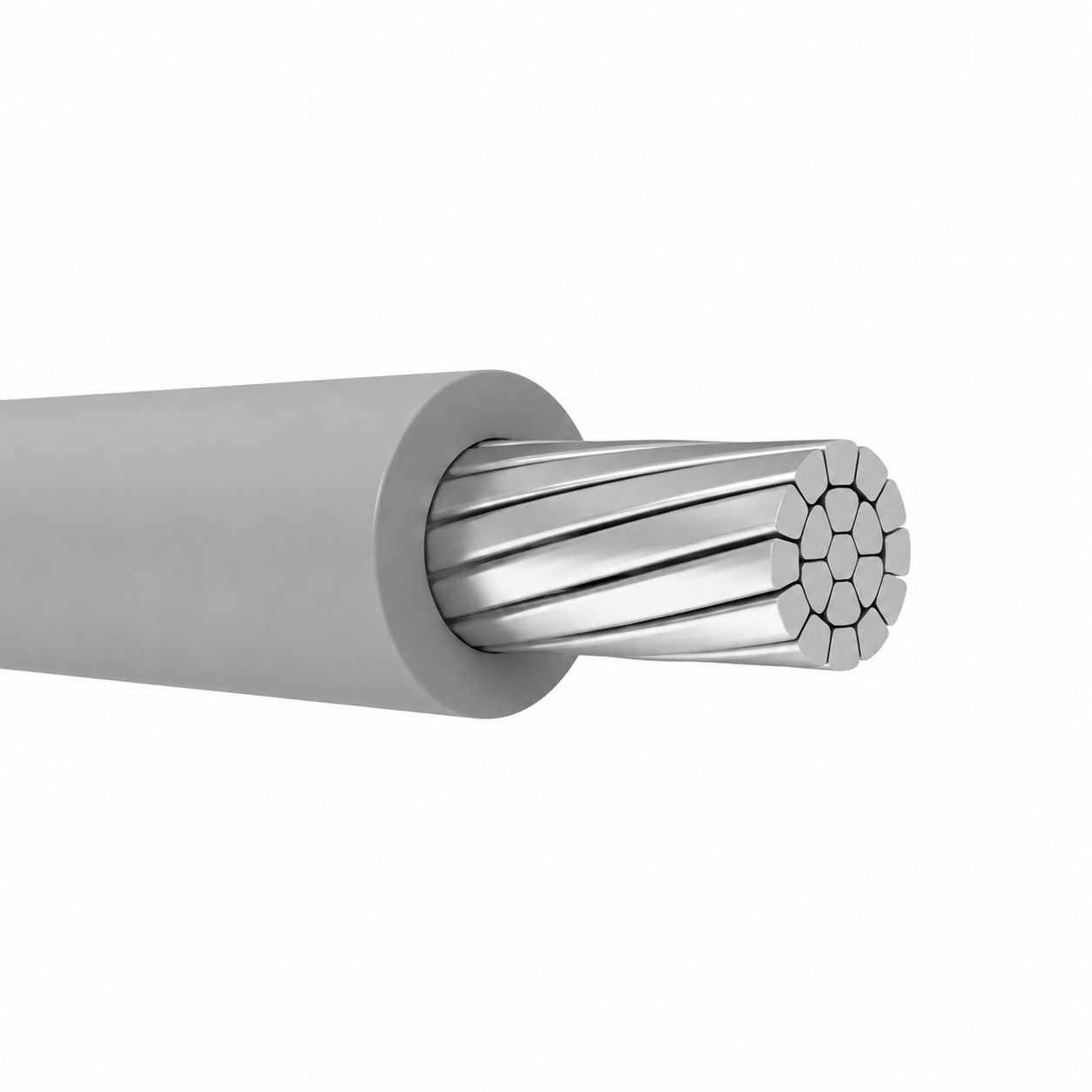

2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom
2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Roll over image to Zoom

2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

SKU: NNC28720X

Availability: IN STOCK, MINIMUM ORDER QUANTITY 70FT

Price:
Regular price
$0.80
Sale price
$0.47 /FT 41% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 17 reviews
88%
(15)
6%
(1)
0%
(0)
0%
(0)
6%
(1)
A
Andrew Stead

Insulation low quality

D
Dennis Zdanowitz

2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

J
Jeff Austin

Great product and great delivery time

N
Nate Dodge

Packaging was neat and tidy, easy to manage. Timely delivery allowing good project flow. Wiring met my needs at very affordable price, helping to keep overall project cost reasonable.

S
Scott Lindgren
Typical wire

everything turned out as it should have. 200' of 4 different color jackets, all came on their own spools. Boxes they came in were a little flimsy, delivery person even warned me that the bottoms were dropping out. But all good.

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

2 AWG THHN THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Allowable Ampacity for 2 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 100 Amps

Applications:

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

2 thhn cable, 2 thwn cable, 2 awg thhn cable, 2 awg thwn cable, 2 thhn aluminum, 2 pvc insulated, 2 pvc insulated wire, 2 pvc insulated aluminium wire, 2 pvc sheathed cable, 2 pvc flexible cable,  2 aluminum wire, #2 awg aluminum wire, 2 gauge aluminum wire

Standards:

  • UL standard 83, 1685, CUL

  • CSA C22.2 No. 75

  • 1/0 & larger are rated for CT use

  • Requirements of the National Electrical Code

  • NEMA WC-70 construction requirements

  • ASTM standards B 800, B 801, B836

  • Federal Specification AA-59544

  • Sunlight resistant

  • RoHS Compliant

Construction

Conductors:

THHN / THWN-2 / T90 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

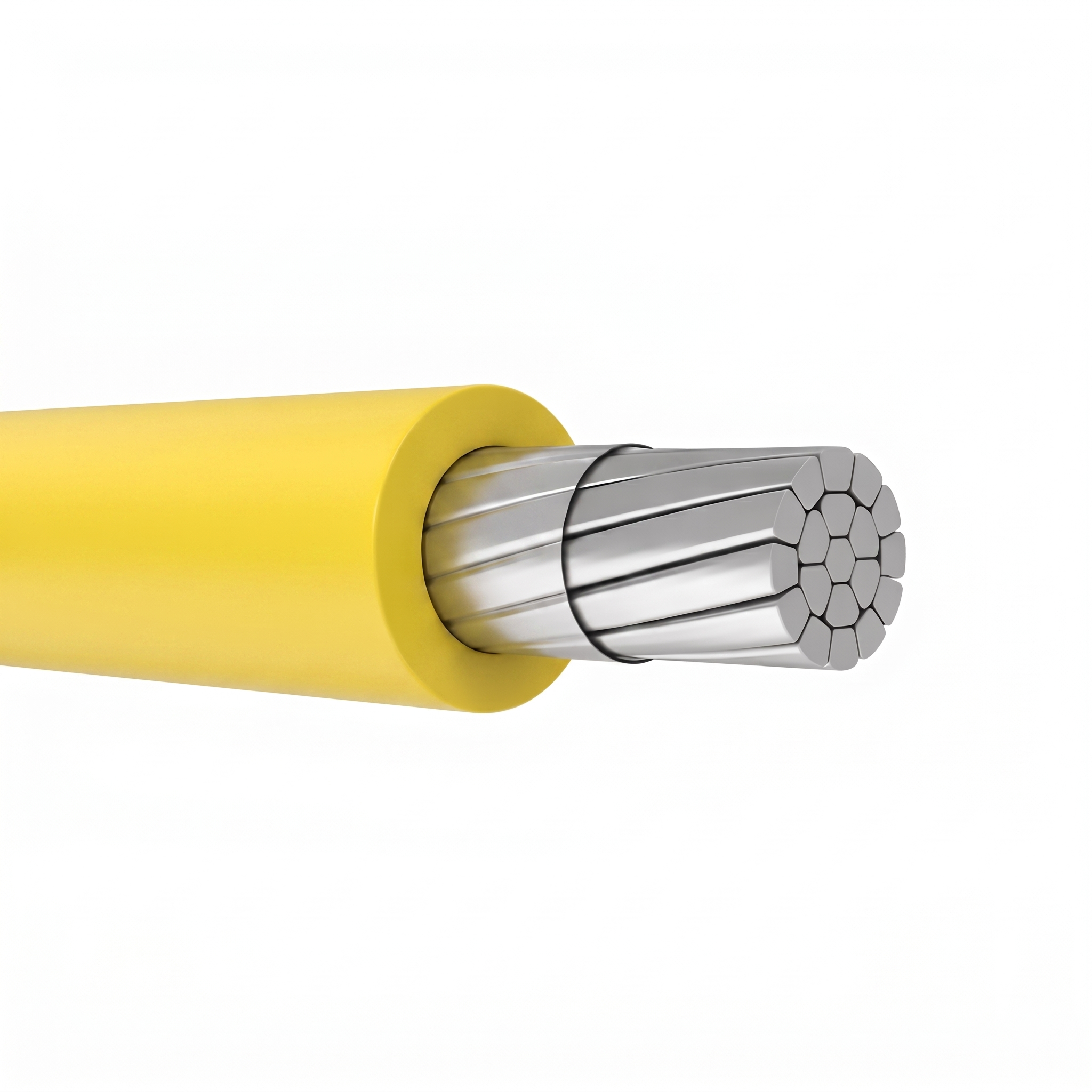

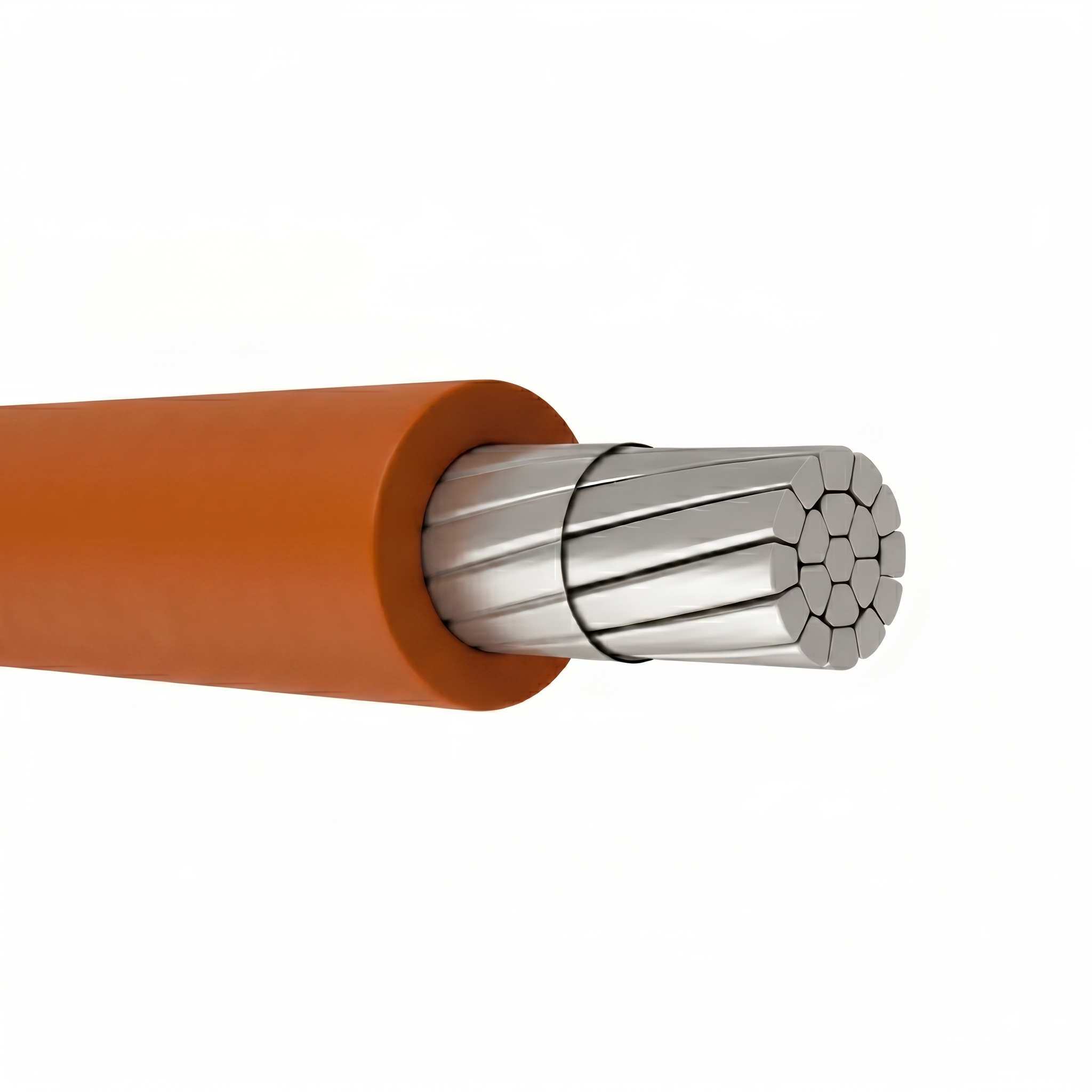

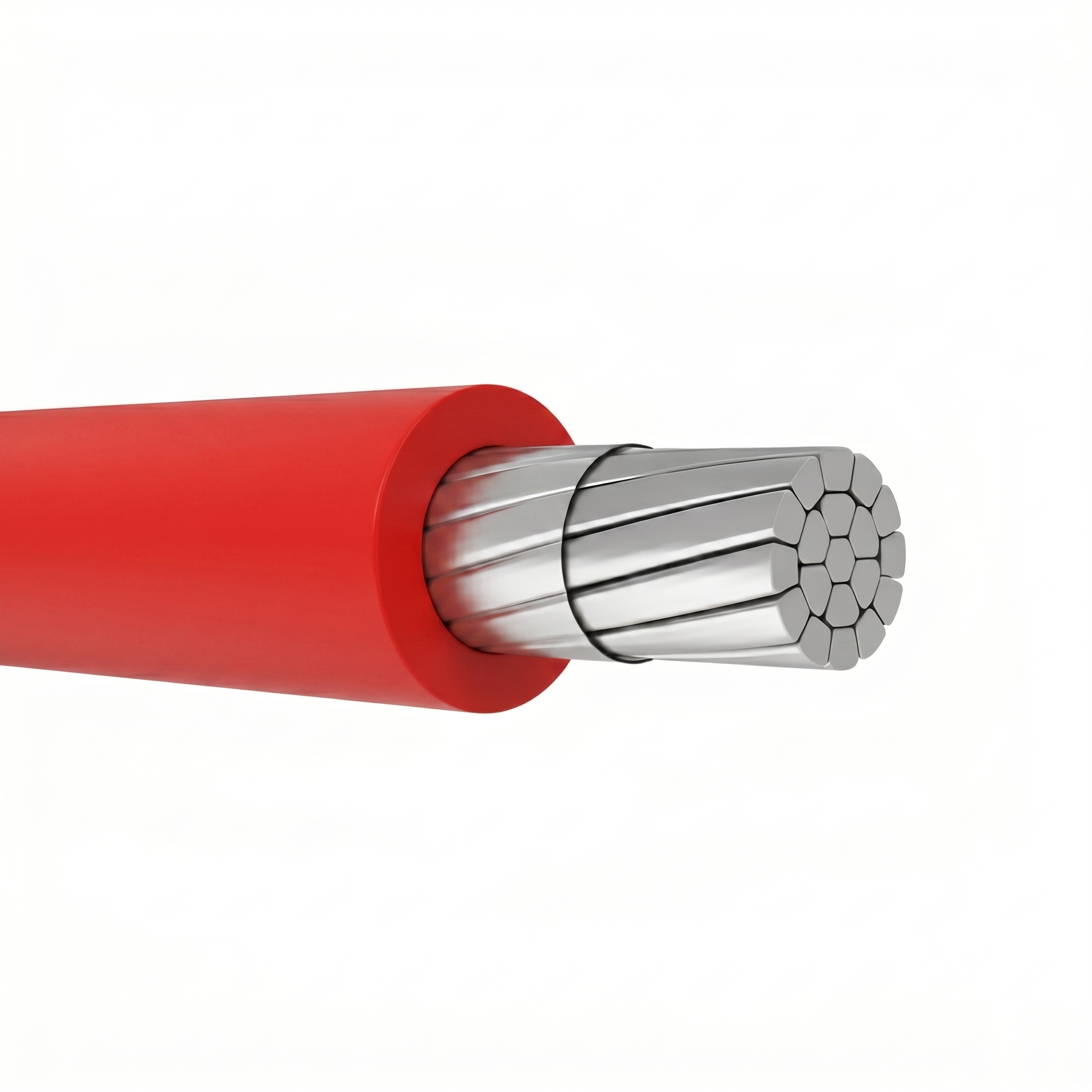

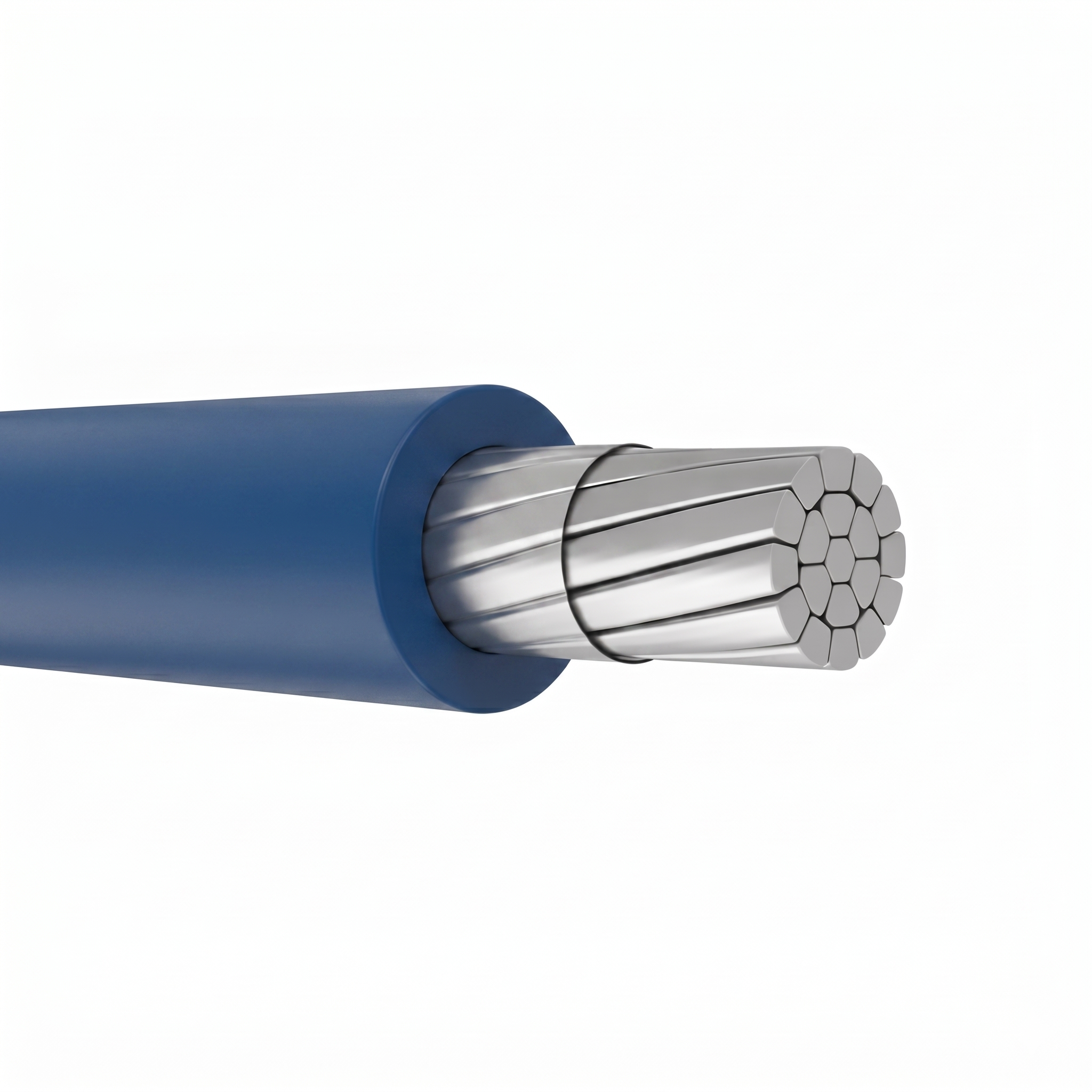

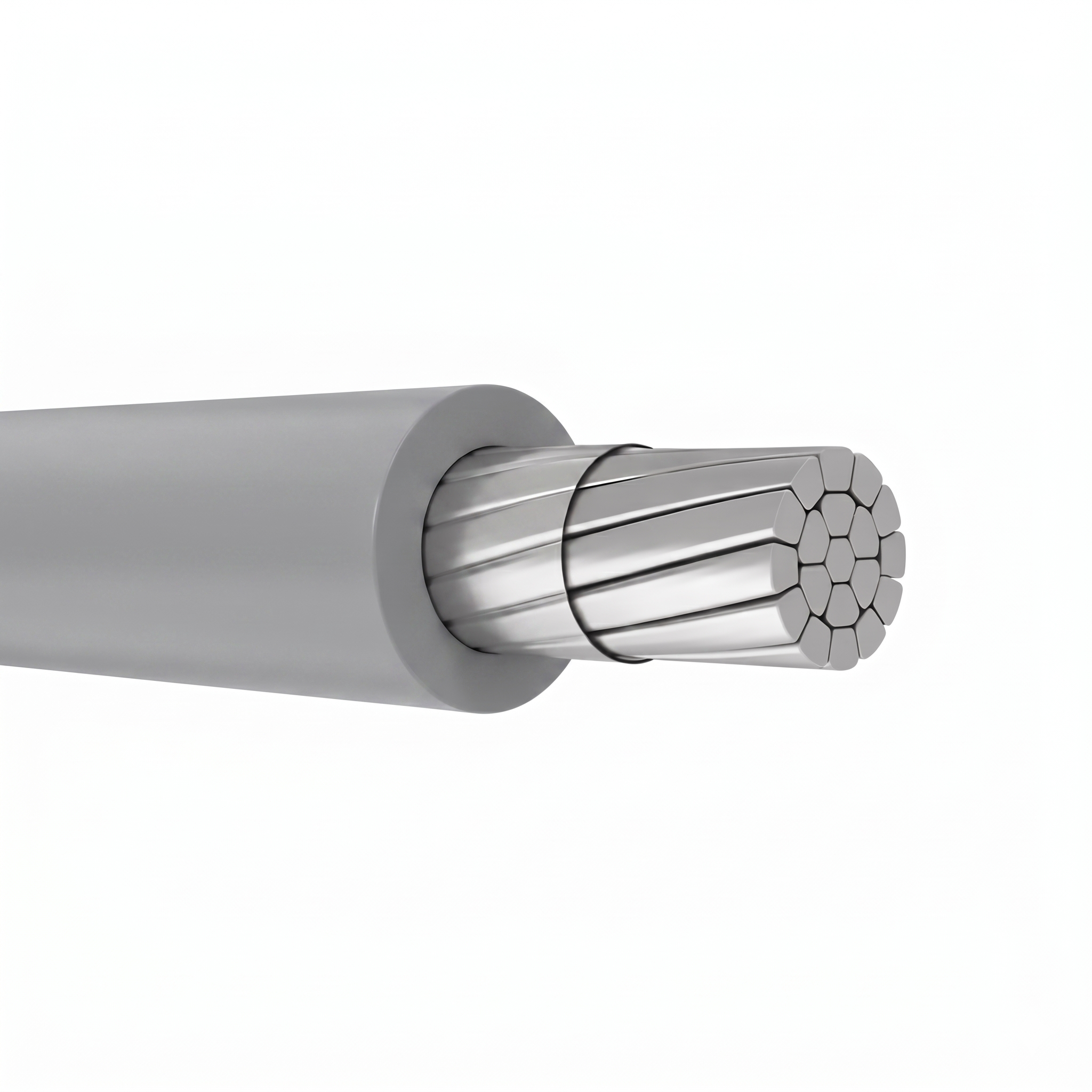

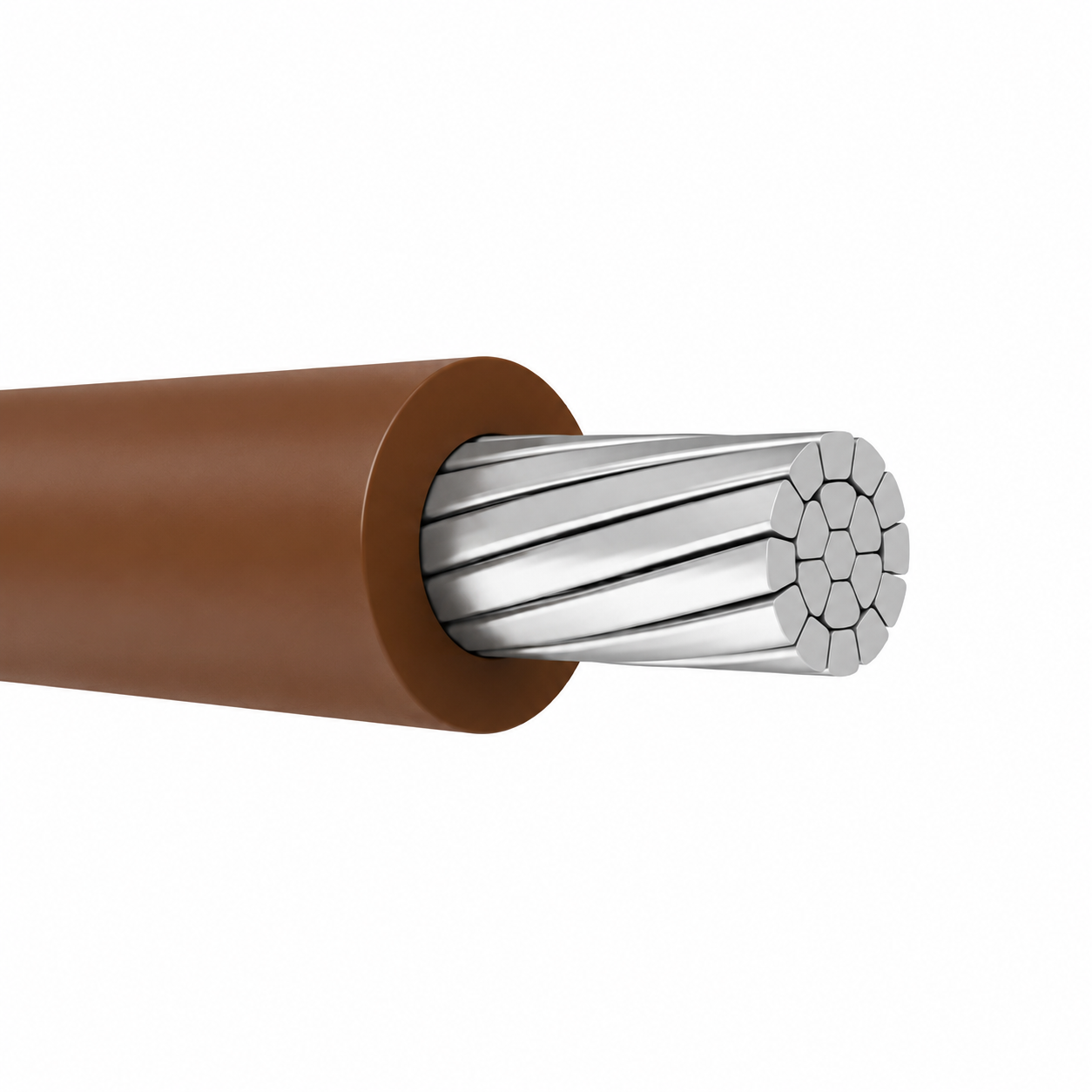

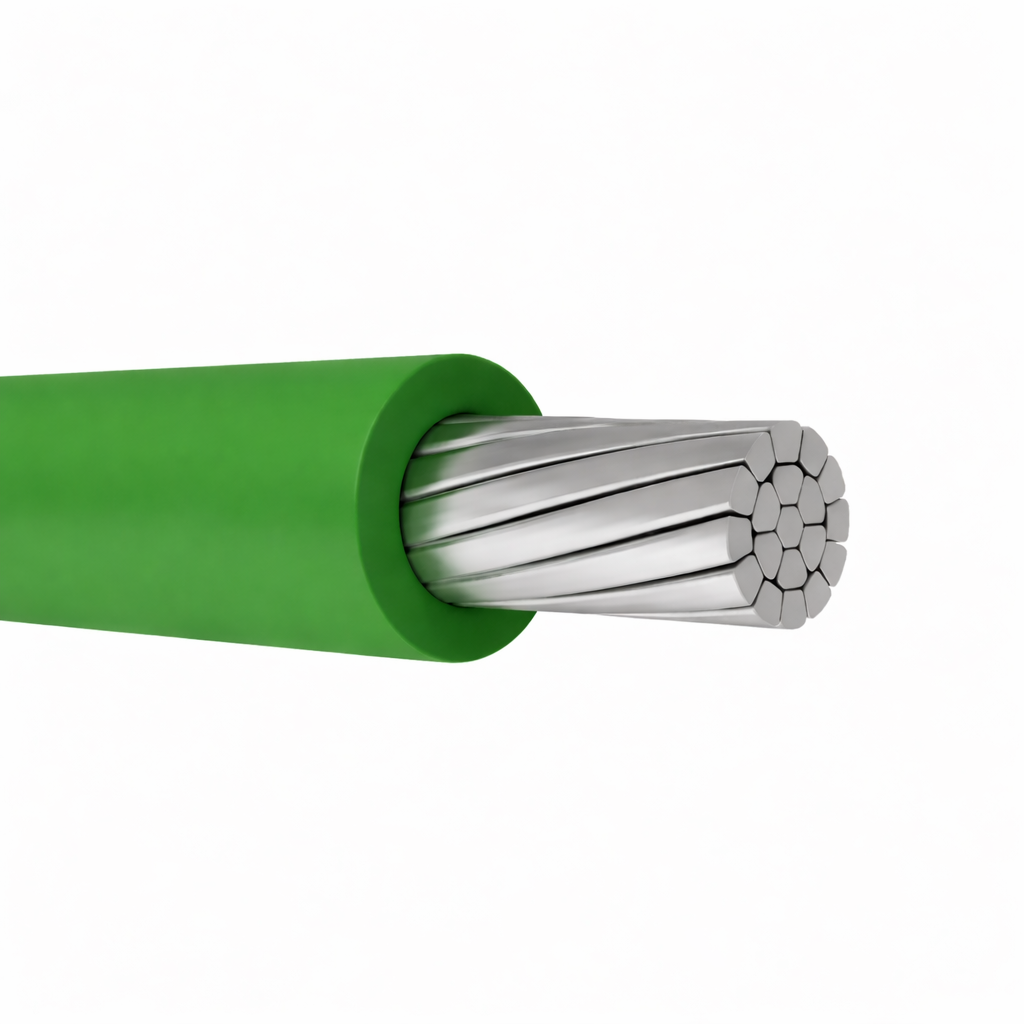

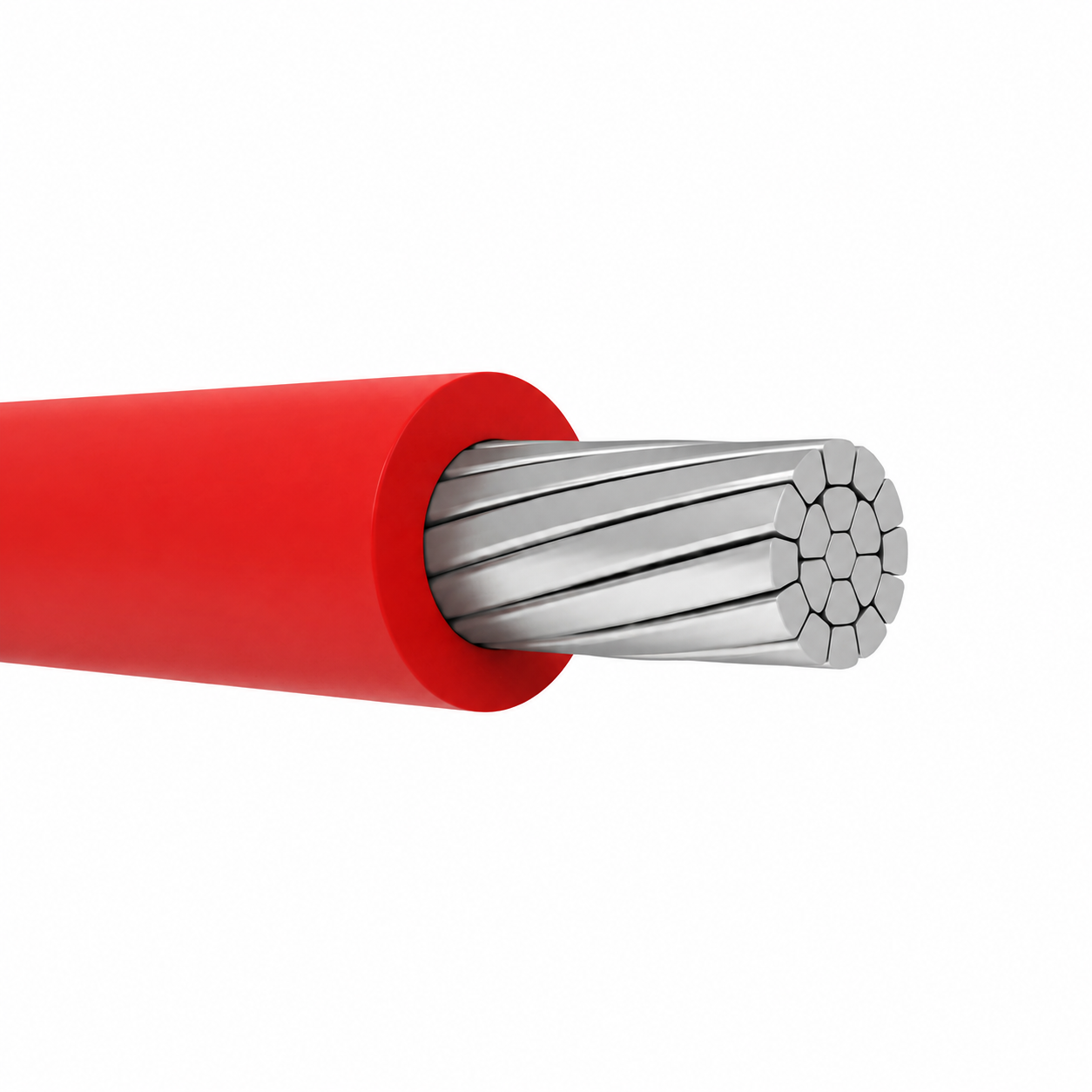

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Specifications:

  • Size AWG: 2

  • Stranding: 7

  • Conductor Diameter Inches: 0.268

  • Insulation Thickness Inches: 0.045

  • Jacket Thickness Inches: 0.006

  • O.D. Inches:  0.360

  • New Weight lb/1000FT: 86 lbs

  • Ampacity at 90°C: 100 Amps

Compatible with Manufacturer

Priority Wire & Cable : 2-01AL-THHN
Classic Wire & Cable : A2-01THHN
Southwire : Black : 56377001
Blue : 57354299
Brown : 58702601
Gray : 57832999
Green : 56274501
Orange : 58702799
Red : 57354199
White : 56349301
Yellow : 58702899

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
