Product Information

Specification

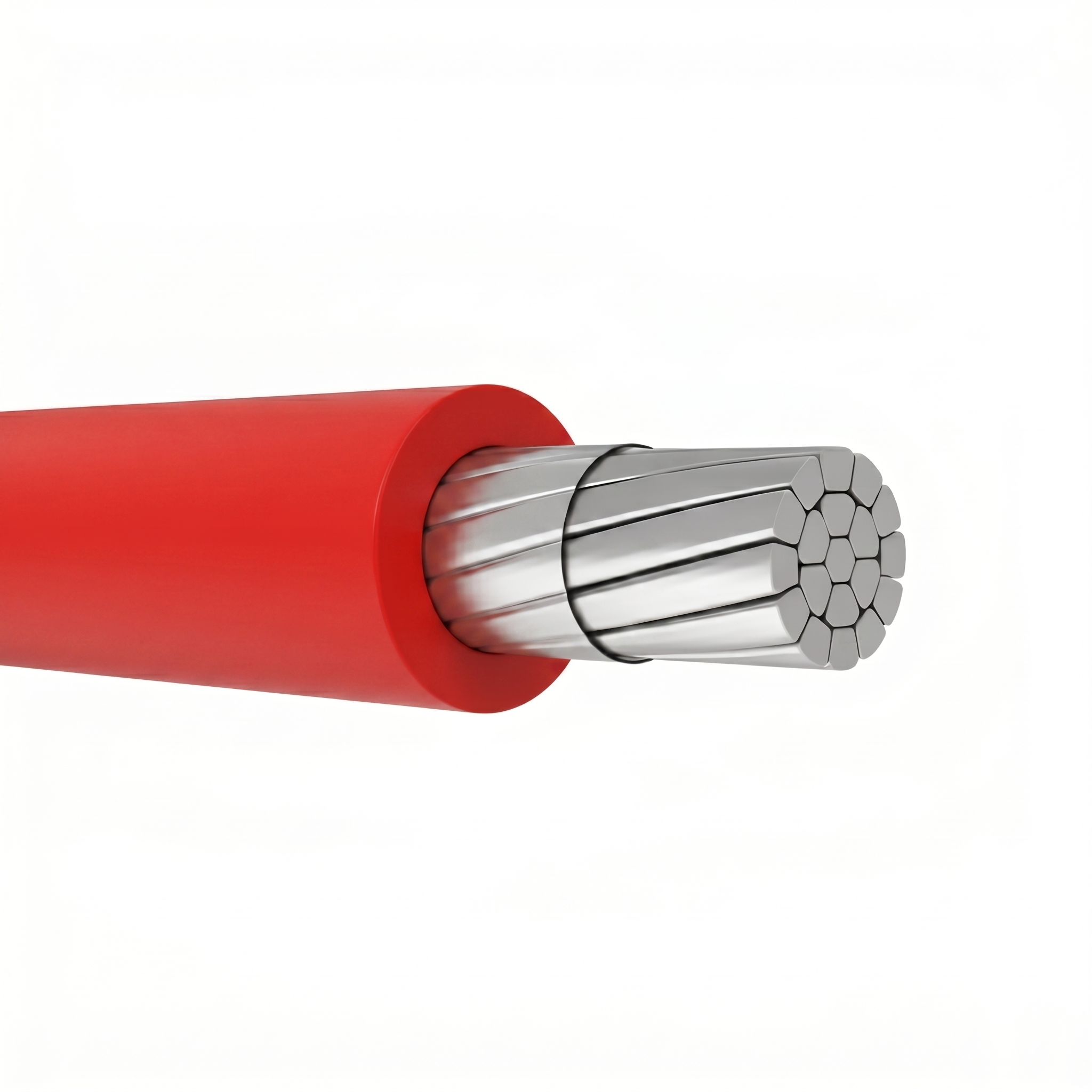

3/0 AWG XHHW-2 Aluminum Cable 600V

Allowable Ampacity for 3/0 AWG XHHW-2 Aluminum Cable 600V at 75°C: 155 Amps

Allowable Ampacity for 3/0 AWG XHHW-2 Aluminum Cable 600V at 90°C: 175 Amps

Applications:

These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

3/0 xhhw-2 cable, 3/0 hxxw-2 cable, 3/0 rw90 cable, 3/0 rw90 wire, 3/0 type se cable style u type xhhw-2, 3/0 xhhw-2, 3/0 southwire xhhw-2, 3/0 xhhw-2 insulation.

Standards:

• XHHW-2 meet or exceed the following standards:

• UL standard 44

• Requirements of the National Electrical Code

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Construction

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Specifications:

• Size AWG: 3/0

• Stranding: 18

• Conductor Diameter Inches: 0.423

• Insulation Thickness Inches: 0.055

• O.D. Inches:  0.533

• New Weight lb/1000FT: 195 lbs

• Ampacity at 75°C: 155 Amps

• Ampacity at 90°C: 175 Amps

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
