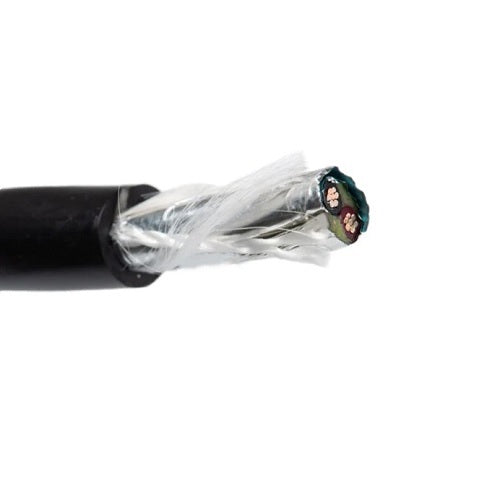

16 AWG 2 Pair Control Tray Cable XLPE Insulation Aluminum/Mylar Shields CPE Jacket 600V

16 AWG 2 Pair Control Tray Cable XLPE Insulation Aluminum/Mylar Shields CPE Jacket 600V
Roll over image to Zoom
16 AWG 2 Pair Control Tray Cable XLPE Insulation Aluminum/Mylar Shields CPE Jacket 600V
SKU: NNC162XTC
600-volts-wire-and-cables

Select a Gauge

16 AWG 2 Pair Control Tray Cable XLPE Insulation Aluminum/Mylar Shields CPE Jacket 600V

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$2.46 /FT
Sale price
$2.46 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Product Information
Specification

16 AWG 2 Pair Control Tray Cable XLPE Insulation Aluminum/Mylar Shields CPE Jacket 600V

Applications:

16 AWG 2 pairs 7 strand bare copper with XLPE insulation, aluminum/mylar shields with
stranded tinned copper drain wires and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.

Also Known As:

16/2 Pair Control Tray Cable, 16/2 Pair XLPE Tray Cable, 16/2 Pair Control Cable, 16/2 Pair CPE Jacket 600V, 16/2 Pair Aluminum/Mylar Shields CPE Jacket 600V

Standards:

  • Refer to NEC (NFPA 70) article 1277 for installation guidelines
  • Cable is suitable for use in Class I Division II hazardous locations
  • UL listed as Type TC-ER per UL Standard 1277 for tray cables
  • UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications
  • Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
  • Meets ICEA S-73-532, where applicable
  • All materials used in the manufacture of this cable are RoHS compliant

Construction
Conductors:

AWG Size & Stranding: 16 AWG 7 Strands Class B
Material: Annealed Bare Copper
Conductor Count: 2 Pairs

Insulation:

Material: Cross-linked Polyethylene
Wall Thickness: 0.030
Color Code: Black & White numbered pairs

Assembly:

Pair/Cable Lay Length: Per UL Standard 1277
Pair Drain Wire: 18 AWG, 7 Strand Tinned Copper
Pair Shield: Foil Free Edged Aluminum/Mylar Tape – 100% coverage
Cable Binder: N/A
Cable Shield: Aluminum/Mylar Tape – 100% coverage
Cable Drain Wire: 16 AWG, 7 Strand Tinned Copper
Fillers: N/A

Jacket:

Material: Chlorinated Polyethylene
Wall Thickness: 0.060
Ripcord: Yes

Specifications:

  • Size (AWG): 6
  • Number of Conductors: 2
  • Number of Strands: 7
  • Diameter: 0.547
  • Color: Black
  • Cold Bend Rating: -25°C
  • Weight: 143 lbs./Mft.

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
