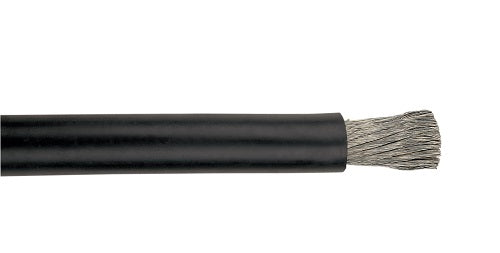

TRANSPOWER HEAD-END POWER TRANSIT CABLE 600V

Name: TRANSPOWER HEAD-END POWER TRANSIT CABLE 600V
Brand: Nassau National Cable
SKU: NNC4082X
Availability: InStock
Rating: 4.93 (7873 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC4082X

Select a Gauge

TRANSPOWER HEAD-END POWER TRANSIT CABLE 600V

Min Length: 1 FT

Max Length: 10000 FT

Categories: 600 volts wire and cables

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Applications:

Used in jumper assemblies locomotive-to-locomotive, locomotive-to-car and car-to-car for transmillion of 480V, 3 phase 60/60 Hz
Designed for heavy-duty service where severe flexing is encountered

Construction:

Conductor: Bare Copper
Insulation: Thermoplastic Elastomer (TPE)
Jacket: Neoprene

Ratings:

Voltage: 600V
Normal Operating Temperature: -55°C to 90°C
Bend radius: 3.5" min. per ICEA S-19-81 (Single conductor only)
Ampacity: 400 Amps 30°C

Features:

Extreme temperature resistance during molding operation: 375°F
Excellent flexibility; withstands continuous vibrations
Outstanding resistance to moisture, oils and fluids, ozone, sunlight, flame and heat
Resistant to abrasion, tearing, and compression

Approvals:
