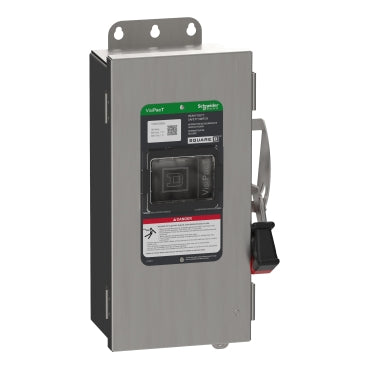

Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 30A, 3 pole, ground lugs - VH361DSGL

Product Information

Specification

Description :-:

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 30A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 4X rated with a stainless steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Key Features :-:

☆  Viewing window allows visual confirmation of switch state with door closed.
☆  Heavy duty fusible 30A, 600VAC/600VDC safety switch.
☆  Suitable for service entrance when equipped with neutral assembly or equipment grounding kit.
☆  Quick make, quick break operating mechanism.
☆  Dual cover interlock blocks opening cover if switch is on and switching on if cover is open.
