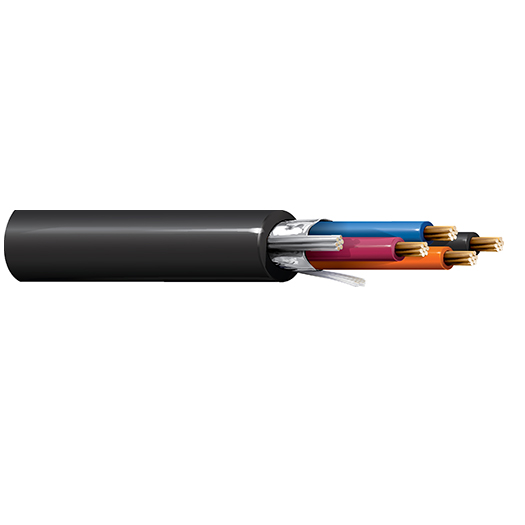

Belden 28617AS 16 AWG 10 Conductor 7x24 Stranded Bare Copper E2 PVC 600V TC-ER Cable

Name: Belden 28617AS 16 AWG 10 Conductor 7x24 Stranded Bare Copper E2 PVC 600V TC-ER Cable
Brand: Nassau National Cable
SKU: belden-28617as-16-awg-10-conductor-7x24-stranded-bare-copper-e2-pvc-600v-tc-er-cable
Availability: InStock
Rating: 4.92 (8174 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

Belden 28617AS 16 AWG 10 Conductor 7x24 Stranded Bare Copper E2 PVC 600V TC-ER Cable

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 28617AS 16 AWG 10 Conductor 7x24 Stranded Bare Copper E2 PVC 600V TC-ER Cable

Allowable Ampacity for Belden 28617AS 16 AWG 10 Conductor 7x24 Stranded Bare Copper E2 PVC 600V TC-ER Cable: 100 Amps

Description:

UL Type TC (1277) PVC-Nylon/PVC, 10 Conductor 16AWG (7x24) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Also Known as:

Belden Cable, Belden Dry/Wet Cable, Belden Drainwire Cable, Bare Copper Cable, Belden E2 Cable, Belden TC-ER Cable, Belden 600V Cable, Belden 28617AS Cable

Construction:

• Conductor Material: BC - Bare Copper
• Insulation Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Outer Shield Material: Bi-Laminate (Alum+Poly) Tape
• Outer Shield Drainwire Material: TC - Tinned Copper
• Outer Jacket Material: PVC - Polyvinyl Chloride
• UL Temp Rating: 90°C Dry, 90°C Wet
• Wet Temp Range: -30°C To +90 °C

Specification:

• AWG Size: 16
• Number of Conductor: 10
• Stranding: 7x24
• Conductor Nominal Diameter: 0.0571 Inch
• Insulation Nominal Diameter: 0.101 Inch
• Outer Shield Drainwire AWG Size: 16
• Outer Jacket Nominal Diameter: 0.501 Inch
• Outer Jacket Nominal Wall Thickness: 0.047 Inch
• Weight (1000 ft): 164 Lbs
• Part Number: 28617AS

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
