Belden 9269 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

Belden 9269 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable
Roll over image to Zoom
Belden 9269 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9269
belden-precision-video-coax-analog-and-digital-cable

Select a Gauge

Belden 9269 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$2.57
$1.94 /FT 24% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

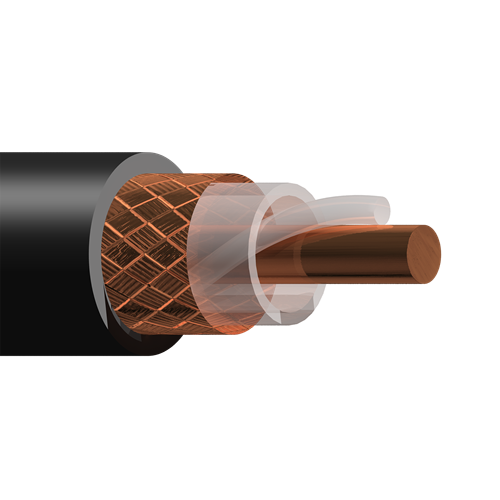

Belden 9269 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

Description:

Coax 93Ω RG-62A/U Type, 22 AWG solid bare copper-covered steel, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket, CM.

Insulation:

• Material: PE - Polyethylene (Semi-Solid)
• Nom. Insulation Diameter: 0.146 in (3.71 mm)
• Solid PE monofilament spiral around conductor. Solid PE tube over monofilament

Outer Shield:

• Layer: 1
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.239 in (6.07 mm)
• Overall Cable Diameter (Nominal): 0.239 in (6.07 mm)

Applications:

• Computer, Instrumentation

Specifications:

• Size (AWG): 22
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.025 in
• Impedance: 93 Ohm
• RG Type: 62
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9269

Manufacturer Equivalents
Alpha Wire : Black : 9062A
Belden : Black : 9269 0101000
General Cable : Black : C1164
Omni Cable : Black : BEL9269
Wirexpress : Black : B9269



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet

Reviews

Related Categories

Belden precision video coax analog and digital cable
From $0.27/FT

Related products

19%off
Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable
$3.30
$4.12
31%off
Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable
$10.15
$14.85
35%off
Belden 9859 20 AWG 2 Conductor 7x28 Stranding 78 Ohm Twinax Cable
$5.53
$8.55
Belden 7805 25 AWG 1 Conductor Solid RG174 Wireless Transmission 50 Ohm Coax Cable
$1.31
$1.31
Belden 7805R 25 AWG 1 Conductor Solid RG174 Wireless Transmission 50 Ohm Coax Cable
$1.49
$1.49
Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable
$0.93
$0.93

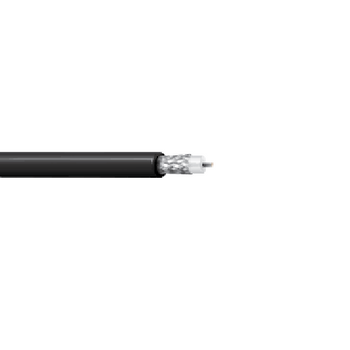

Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable
