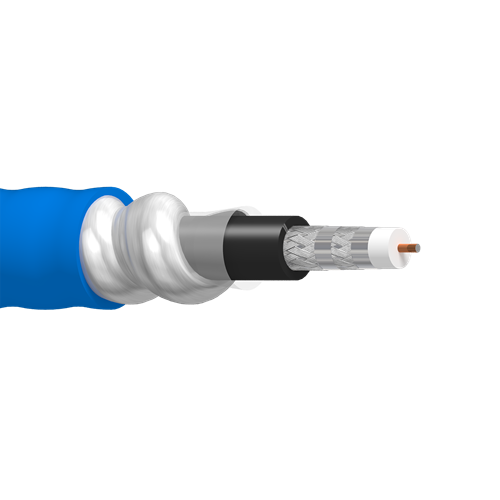

Belden 123092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Name: Belden 123092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable
Brand: Belden Cable
SKU: NNC123092A
Price: 6.18 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC123092A

Select a Gauge

Belden 123092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $7.48
Sale price: $6.18 /FT 17% off

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 123092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Description:

ControlBus, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, PO Insulation, Overall Duofoil+ Aluminum Braid(60%)+Overall Duofoil+Aluminum Braid (40%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.178 in (4.52 mm)

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.298 in (7.57 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 40%

Armor:

• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in (0.64 mm)
• Diameter Over Armor: 0.501 in (12.7 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.591 in (15.0 mm)
• Overall Cable Diameter (Nominal): 0.591 in (15.0 mm)

Applications:

• Exposure to rodent, crush, or cut through force, harsh environment, factory automation, ControlNet, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications.

Specifications:

• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.0403 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 123092A
