Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable

Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable
Roll over image to Zoom
Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8218
belden-precision-video-coax-analog-and-digital-cable

Select a Gauge

Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.12 /FT
$1.12 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8218 27 AWG 1 Conductor 7x35 Stranding Analog Video 75 Ohm Coax Cable

Description:

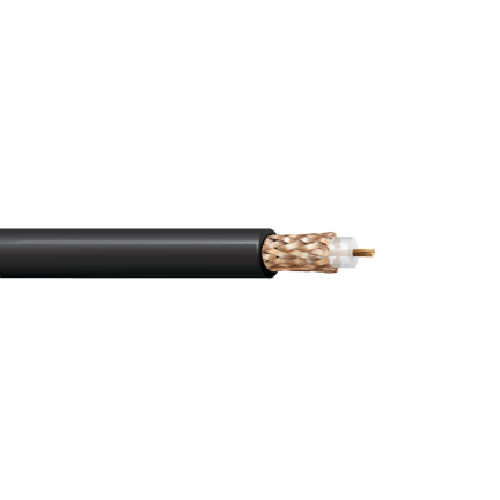

27 AWG stranded (7x35) 0.017" bare copper-covered steel conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.1 in

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.15 in

Specifications:

• Size (AWG): 27
• Conductor Count: 1
• Stranding: 7x35
• Impedance: 50 Ohm
• Nom. Diameter: 0.017 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 8218

Manufacturer Equivalents
Anixter : Black : B8218
Belden : Black : 8218 0101000
General Cable : Black : C1158
Wirexpress : Black : B8218



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
