Belden 539945 18 AWG 1 Conductor Solid 1 Pair 7x26 Stranding RG-6 75 Ohm PTZ Cable

Name: Belden 539945 18 AWG 1 Conductor Solid 1 Pair 7x26 Stranding RG-6 75 Ohm PTZ Cable
Brand: Belden Cable
SKU: NNC539945
Price: 0.66 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC539945

Select a Gauge

Belden 539945 18 AWG 1 Conductor Solid 1 Pair 7x26 Stranding RG-6 75 Ohm PTZ Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.66 /FT
Sale price: $0.66 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 539945 18 AWG 1 Conductor Solid 1 Pair 7x26 Stranding RG-6 75 Ohm PTZ Cable

Description:

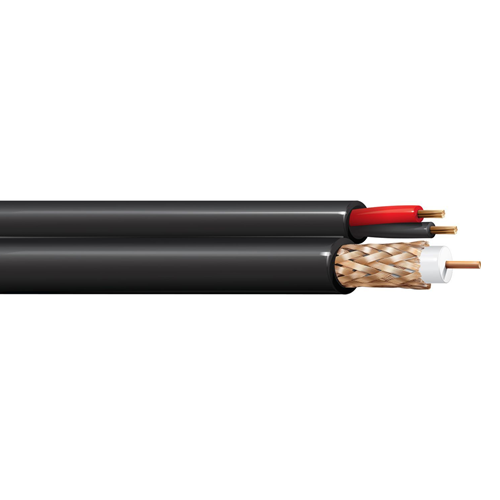

PTZ (CCTV + Power/Audio) Cable, Rated-CMG, 1-RG6 18 AWG solid bare copper with foam polyethylene 90% bare copper braid, 1-18 AWG stranded bare copper pair with polypropylene insulation, Siamese with PVC jacket.

Insulation:

Element: Coax(es);-
• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.180 in

Element: Pair(es);-
• Material: PP - Polypropylene
• Nominal Diameter: 0.059 in

Inner Shield:

Element: Coax(es);-
• Type: Braid
• Material: Bare Copper (BC)
• Coverage [%]: 95%

Element: Pair(es);-
• No Shield

Inner Jacket:

Nominal Diameter: 0.267 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.267 in x 0.485 in
• Overall Cable Diameter (Nominal): 0.0236 in

Applications:

• Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

Specifications:

Element: Coax(es);-
• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Impedance: 75 Ohm
• RG Type: 6

Element: Pair(es);-
• Size (AWG): 18
• Number of Pair: 1
• Stranding: 7x26
• Nom. Diameter: 0.046 in
• Conductor Material: BC - Bare Copper
• RG Type: 6
• Part Number: 539945

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
