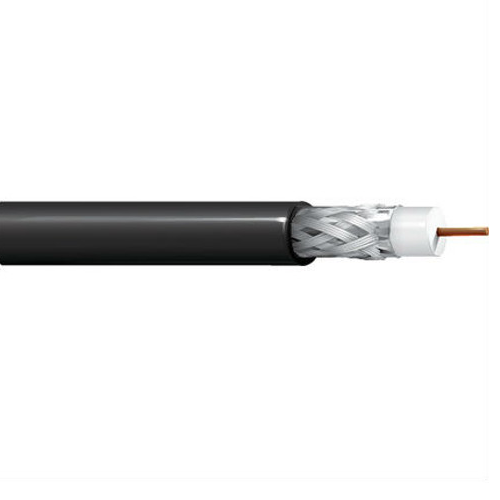

Belden 1369R 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Video Coax Cable

Name: Belden 1369R 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Video Coax Cable
Brand: Belden Cable
SKU: NNC1369R
Price: 0.8 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC1369R

Select a Gauge

Belden 1369R 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Video Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $1.33
Sale price: $0.80 /FT 39% off

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 1369R 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Video Coax Cable

Description:

Video Cable , Riser-CMR, RG6, 18 AWG solid bare copper, foam polyethylene insulation, Duofoil; 85% tinned copper braid, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.17 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage [%] 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 185%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.235 in

Applications:

• Commercial Video

Specifications:

• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.04 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BC - Bare Copper
• Part Number: 1369R

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
