Belden 82262 22 AWG 1 Conductor Solid RG-62/U 93 Ohm Coax Cable

Name: Belden 82262 22 AWG 1 Conductor Solid RG-62/U 93 Ohm Coax Cable
Brand: Belden Cable
SKU: NNC82262
Price: 4.83 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC82262

Select a Gauge

Belden 82262 22 AWG 1 Conductor Solid RG-62/U 93 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.83 /FT
Sale price: $4.83 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

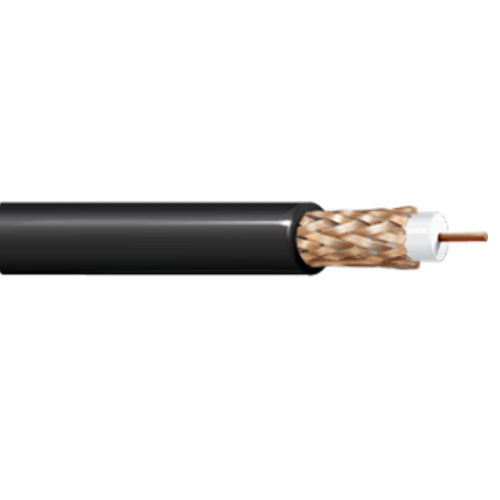

Belden 82262 22 AWG 1 Conductor Solid RG-62/U 93 Ohm Coax Cable

Description:

RG-62/U type, 22 AWG solid 0.025" bare copper-covered steel conductor, plenum, foam FEP insulation, bare copper braid shield (94% coverage), Flamarrest jacket.

Insulation:

• Material: FFEP - Foam Fluorinated Ethylene Propylene
• Insulation Diameter: 0.146 in.
• Insulation Material Trade Name: Teflon

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 94%

Outer Jacket:

• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Outer Jacket Material Trade Name: Flamarrest
• Overall Nominal Diameter: 0.204 in.

Specifications:

• Size (AWG): 22
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.025 in.
• Impedance: 93 Ohm
• RG Type: 62
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 82262

Manufacturer Equivalents
Anixter :	Natural : B82262
Belden :	Natural : 82262 8771000
General Cable :	Natural : C3520
Wirexpress :	Natural : B82262
