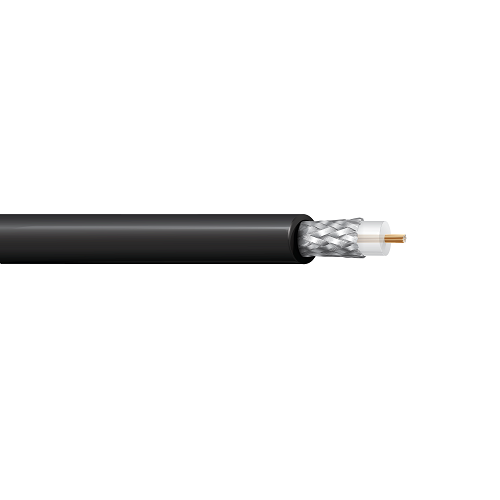

Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable

Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable
Roll over image to Zoom
Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8216
belden-precision-video-coax-analog-and-digital-cable

Select a Gauge

Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$0.93 /FT
$0.93 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor , PE Insulation, 90% Tinned Copper Braid Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.060 in (1.5 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.110 in (2.79 mm)
• Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Specifications:

• Size (AWG): 26
• Conductor Count: 1
• Stranding: 7x34
• Nom. Diameter: 0.019 in
• RG Type: 174
• Impedance: 50 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 8216

Manufacturer Equivalents
Alpha Wire : Black : 9174
Anixter : Black : B8216
Belden : Black : 8216 0101000
General Cable : Black : C1156
Wirexpress : Black : B8216



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
