Belden 3093A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Name: Belden 3093A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable
Brand: Belden Cable
SKU: NNC3093A
Price: 9.14 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC3093A

Select a Gauge

Belden 3093A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $11.36
Sale price: $9.14 /FT 19% off

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

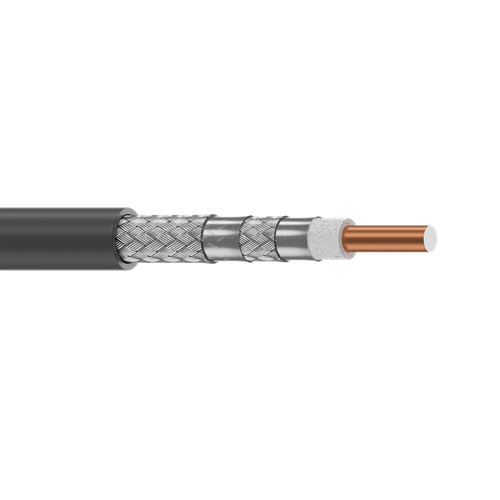

Belden 3093A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Description:

Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam FEP Insulation, Overall Duobond II+ Aluminum Braid(60%)+Duofoil+Aluminum Braid(40%) Shield, PVDF Outer Jacket, CMP High Temp 150 °C.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 40%

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.274 in (6.96 mm)
• Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)

Applications:

• Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Specifications:

• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.040 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 3093A
