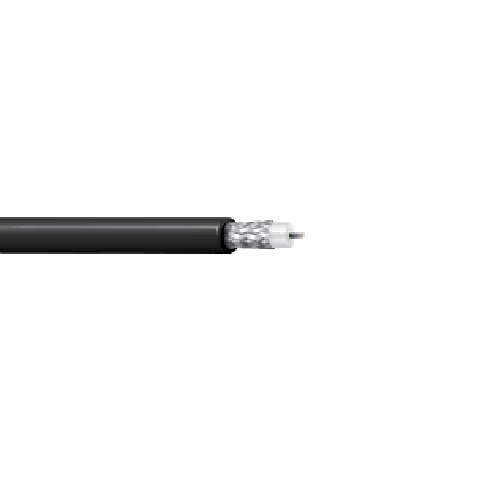

Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable

Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable
Roll over image to Zoom
Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC83265
belden-precision-video-coax-analog-and-digital-cable

Select a Gauge

Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$2.70 /FT
$2.70 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 83265 30 AWG 1 Conductor 7x38 Stranding RG-178 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-178, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.033 in (0.84 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.071 in (1.8 mm)
• Overall Cable Diameter (Nominal): 0.071 in (1.8 mm)

Applications:

• Aerospace wireless communication

Specifications:

• Size (AWG): 30
• Conductor Count: 1
• Stranding: 7x38
• Nom. Diameter: 0.012 in
• RG Type: 178
• Impedance: 50 Ohm
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 83265

Manufacturer Equivalents
Alpha Wire : White : 9178B
Anixter : White : B83265
Belden : White : 83265 0091000
Wirexpress : White : B83265



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet

Reviews

Related Categories

Belden precision video coax analog and digital cable
From $0.27/FT

Related products

19%off

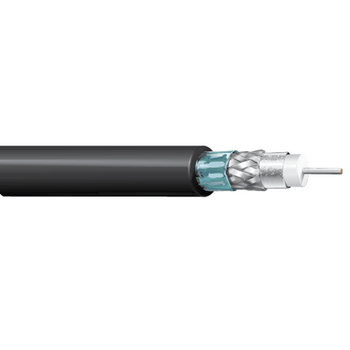

Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable
$3.30
$4.12
31%off

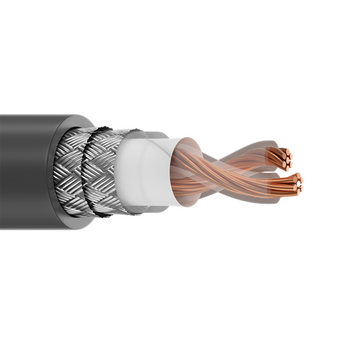

Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable
$10.15
$14.85
35%off

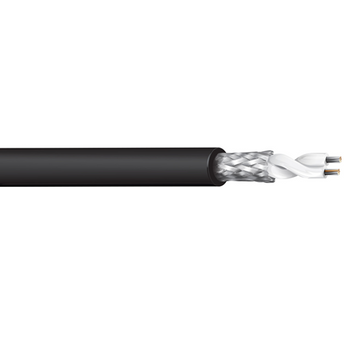

Belden 9859 20 AWG 2 Conductor 7x28 Stranding 78 Ohm Twinax Cable
$5.53
$8.55

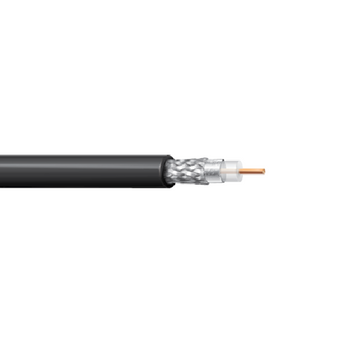

Belden 7805 25 AWG 1 Conductor Solid RG174 Wireless Transmission 50 Ohm Coax Cable
$1.31
$1.31
Belden 7805R 25 AWG 1 Conductor Solid RG174 Wireless Transmission 50 Ohm Coax Cable
$1.49
$1.49
Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable
$0.93
$0.93

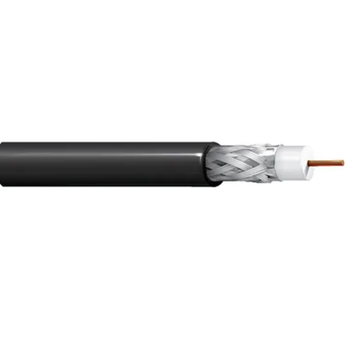

Belden 83266 30 AWG 1 Conductor 7x38 Stranding RG180 95 Ohm Coax Cable
$5.73
$5.73
32%off

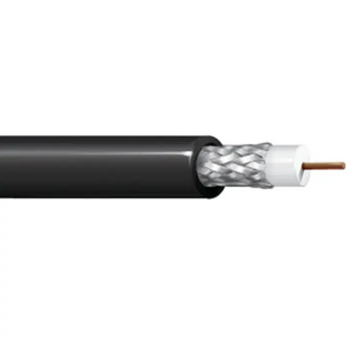

Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
$4.88
$7.28

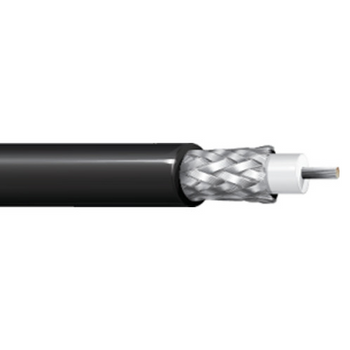

Belden 83269 26 AWG 1 Conductor 7x34 Stranding RG-188 Mil-Spec 50 Ohm Coax Cable
$4.44
$4.44
31%off

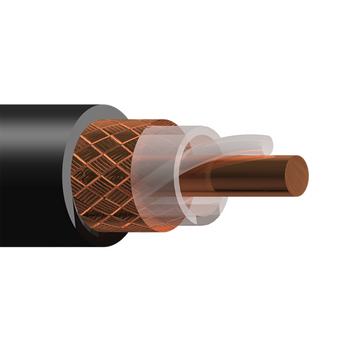

Belden 9228 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable
