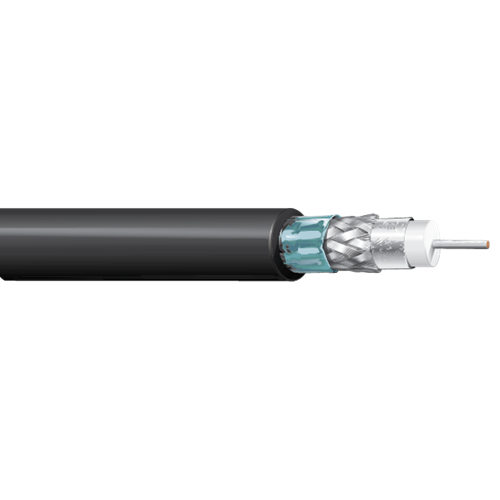

Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable

Name: Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable
Brand: Belden Cable
SKU: NNC4794R
Price: 3.3 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC4794R

Select a Gauge

Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.12
Sale price: $3.30 /FT 19% off

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable

Description:

75 Ohm SDI Coax, Series 7, 16 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.225 in (5.72 mm)
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

• Layer 3: Outer Shield Type Tape, Bi-Laminate (Alum+Poly) Material, Material Trade Name Beldfoil, Coverage 100%

• With Shorting Fold and Bonded to inside of jacket for easy preparation

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.320 in (8.13 mm)
• Overall Cable Diameter (Nominal): 0.320 in (8.13 mm)

Applications:

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Specifications:

• Size (AWG): 16
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.051 in
• Impedance: 75 Ohm
• Series Type: 7
• Conductor Material: SC - Silvered Copper
• Part Number: 4794R

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
