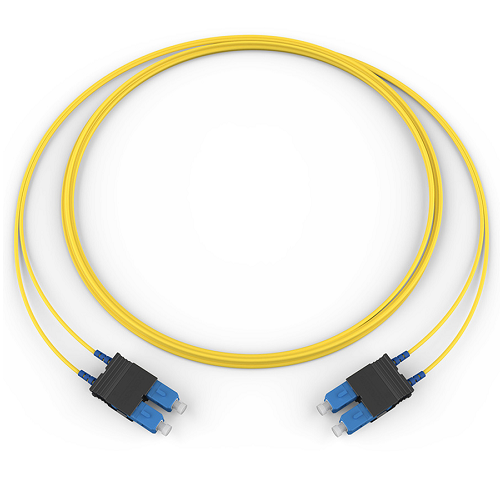

Tight-Buffered Fiber Optic Jumper 2 F SC Duplex to SC Duplex Zipcord Cable Riser 2.0 mm legs Yellow CORNING-C 727202R5120003M

Name: Tight-Buffered Fiber Optic Jumper 2 F SC Duplex to SC Duplex Zipcord Cable Riser 2.0 mm legs Yellow CORNING-C 727202R5120003M
Brand: Corning
SKU: 727202R5120003M
Price: 33.0 USD
Availability: InStock
Rating: 4.9 (8668 reviews)

Roll over image to Zoom

Tight-Buffered Fiber Optic Jumper 2 F SC Duplex to SC Duplex Zipcord Cable Riser 2.0 mm legs Yellow CORNING-C 727202R5120003M

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: 727202R5120003M

Select a Variant

Tight-Buffered Fiber Optic Jumper 2 F SC Duplex to SC Duplex Zipcord Cable Riser 2.0 mm legs Yellow CORNING-C 727202R5120003M

Availability: In stock

Price:

Regular price: $33.00
Sale price: $33.00

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Product Number :	C
EAN Code :	4056418172118
Application:	Vertical Riser, General Building Applications
Cable Type:	Tight-Buffered
Flame Rating :	Riser (OFNR)
Cable Assembly Type :	Two Fiber
RoHS:	Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count :	2
Outer Jacket Color :	Yellow
Nominal Outer Diameter :	4 mm (0.16 in)
Reflectance, Typical:	≤ -59 dB
Polish:	UPC
Insertion Loss, Typical :	0.15 dB
Boot Color :	0.15 dB
Connector Type :	SC Duplex
Ferrule Material :	Ceramic
Housing Color :	Blue
Housing Material :	Composite
Length:	3 m (9.84 ft)
Leg Diameter :	2 mm (0.08 in)
Plug Type :	Heat-shrink sleeve
Plug Height :	5.5 mm (0.22 in)
Plug Width :	3.5 mm (0.14 in)
Plug Depth :	25.4 mm (1 in)
Leg Length:	254 mm -0 / +38.1mm (10 in -0 / +1.5in)

Tight-Buffered Fiber Optic Jumper 2 F SC Duplex to SC Duplex Zipcord Cable Riser 2.0 mm legs Yellow CORNING-C 727202R5120003M

Description:
•Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST® compatible, and MT-RJ. RoHS-compliant Zipcord, DFX®, MIC®, Fan-out, and RIC cables are available.

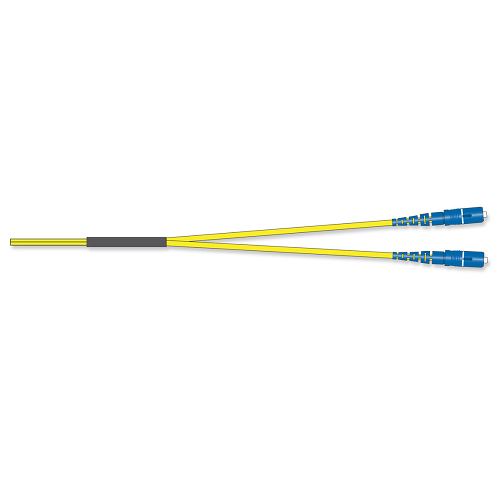

• Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.
• Many of our fiber optic cable assemblies are highly configurable. If you don’t see what you are looking for here, please review the ordering matrix contained in the family spec sheet or contact Customer Care at 1-800-743-2675.

Features and Benefits
Flame-retardant jacket
• Rugged and durable
Superior Performance Testing
• Every termination is tested to ensure the highest in network performance
State-Of-The-Art Manufacturing Processes
• Corning's proprietary manufacturing processes and advanced technology results in unsurpassed product consistency
Corning advantage
• Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
