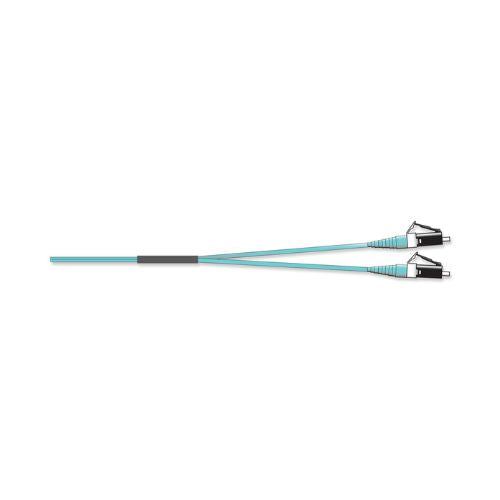

1 Meters Fiber Optic Jumper 2F Zipcord Riser Standard Aqua Jacket 505002T5120001M

Product Information

Specification

About:

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS-compliant Zipcord, DFX, MIC, fan-out, and RIC cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.

Specifications:

Product Number: 505002T5120001M
EAN Code: 4056418173993
Flame Rating: Riser (OFNR)
Fiber Category: 50 µm MM (OM3)
Cable Assembly Type: Two Fiber
Application: General Building Applications,  Vertical Riser
Cable Type: Tight-Buffered
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count: 2
Outer Jacket Color: Aqua
Insertion Loss, Typical: 0.35 dB
Boot Color: Aqua
Connector Type: ST compatible
Ferrule Material: Ceramic
Housing Color: Black
Housing Material: Composite
Leg Diameter: 2 mm (0.08 in)
Plug Type: Heat-shrink sleeve
Plug Height: 5.5 mm (0.22 in)
Plug Width: 3.5 mm (0.14 in)
Plug Depth: 25.4 mm (1 in)
Leg Length: 254 mm   -0 / +38.1mm (10 in   -0 / +1.5in)

Features:

• Rugged and durable

• Every termination is tested to ensure the highest in-network performance

• Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency

• Integrated developer and manufacturer of cable, connectors, and fiber to ensure overall cable assembly performance
