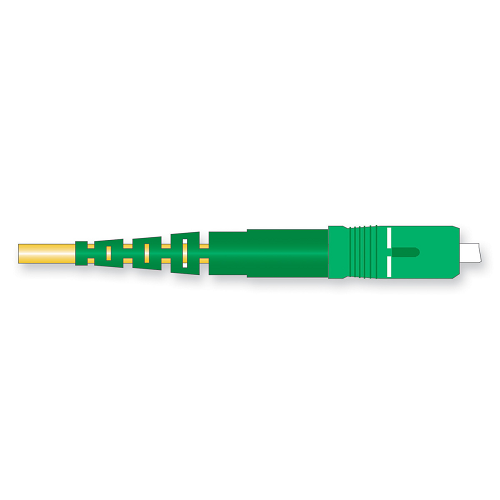

2" Meters Fiber Optic Jumper SC APC Tight Buffered Cable Riser 2.0 mm Standard SCAPC Simplex SM SMF Ultra 1F Single Fiber Standard Yellow Jacket 444401G2131002M

Product Information

Specification

About:

Simplex cable assemblies are offered with a variety of connector combinations. Connector options include LC, SC, FC and ST Compatible. RoHS compliant cables with riser-rated jackets are available in 3.0 mm, 2.0 mm, 1.6 mm and 900 µm.

Specifications:

Flame Rating: Riser (OFNR)
Fiber Category: Bend-improved Single-Mode (OS2)
Cable Assembly Type: Single fiber
Cable Type: Tight-Buffered
Fiber Count: 1
Outer Jacket Color: Yellow
Fiber Code: G
Fiber Type: Single-Mode Ultra-Bendable Fiber
Fiber Core Diameter: 8.2 µm
Fiber Category: OS2
Reflectance, Typical: ≤ -65 dB
Polish: APC
Insertion Loss, Typical: 0.15 dB
Boot Color: Green
Connector Type: SC APC
Ferrule Material: Ceramic
Housing Color: Green
Housing Material: Composite
Part Number: 444401G2131002M

Features:

• Flame-retardant jacket
Rugged and durable
• Superior Performance Testing
Every termination is tested to ensure the highest in network performance
• State-Of-The-Art Manufacturing Processes
Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
• Corning advantage
Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
