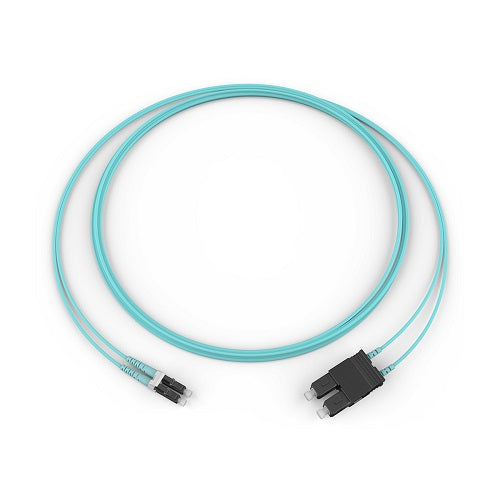

2 Meters Fiber Optic Jumper Standard LC Duplex MM 2F Zipcord Plenum Standard Aqua Jacket 055702T5820002M

Product Information

Specification

About:

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS-compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available. Additional detailed bifurcation images are available in the Cable Assembly Family Specification Sheet.

Specifications:

Product Number: 055702T5820002M
EAN Code: 4056418606088
Flame Rating: Plenum (OFNP)
Fiber Category: 50 µm MM (OM3)
Cable Assembly Type: Two Fiber
Application: General Building Applications,  Indoor Horizontal, Plenum
Cable Type: Tight-Buffered
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count: 2
Outer Jacket Color: Aqua
Insertion Loss, Typical: 0.35 dB
Boot Color: Aqua
Connector Type: LC Duplex
Ferrule Material: Ceramic
Housing Color: Black
Housing Material: Composite
Leg Diameter: 2 mm (0.08 in)
Plug Type: Heat-shrink sleeve
Plug Height: 5.5 mm (0.22 in)
Plug Width: 3.5 mm (0.14 in)
Plug Depth: 25.4 mm (1 in)
Leg Length: 254 mm (-0/+38.1 mm) (10 in. (-0/+1.5 in.))

Features:

• Rugged and durable

• Every termination is tested to ensure the highest in-network performance

• Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency

• Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
