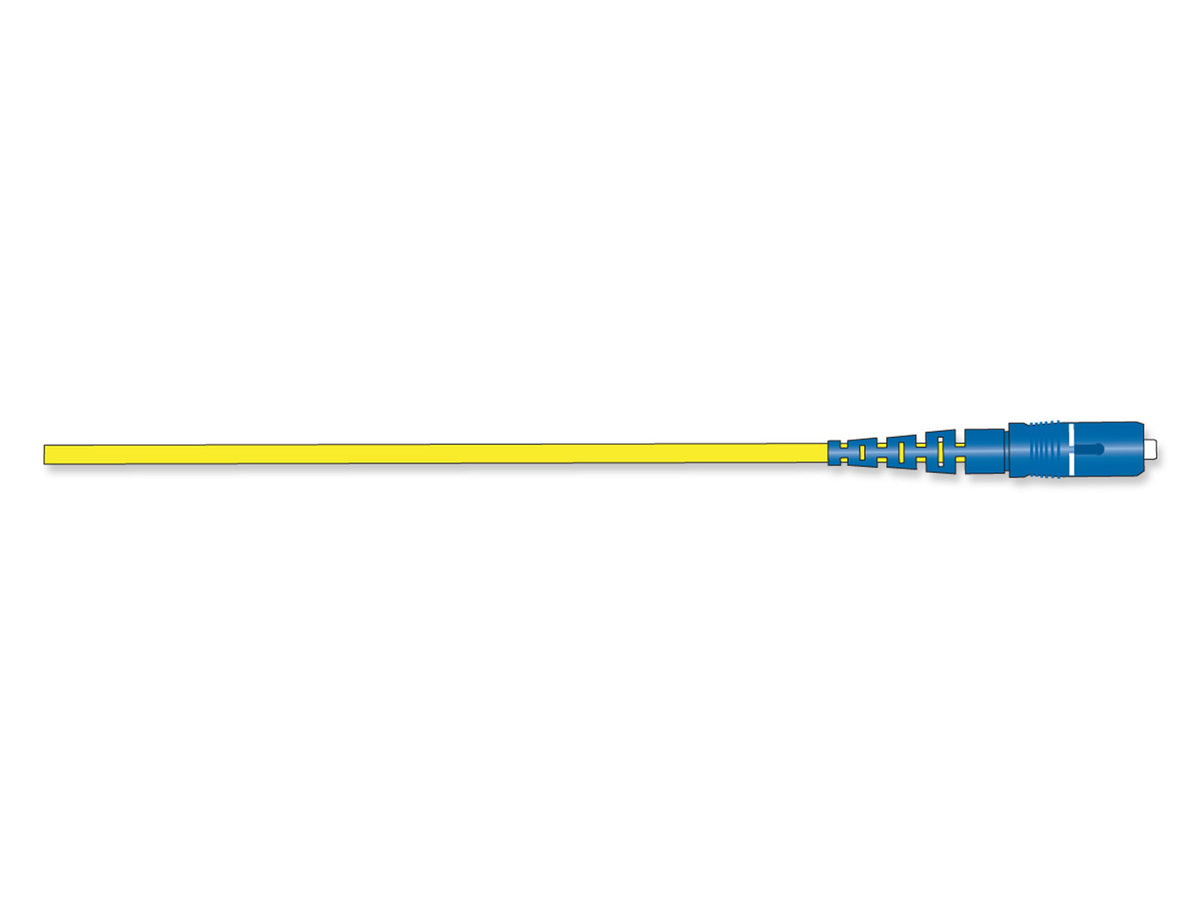

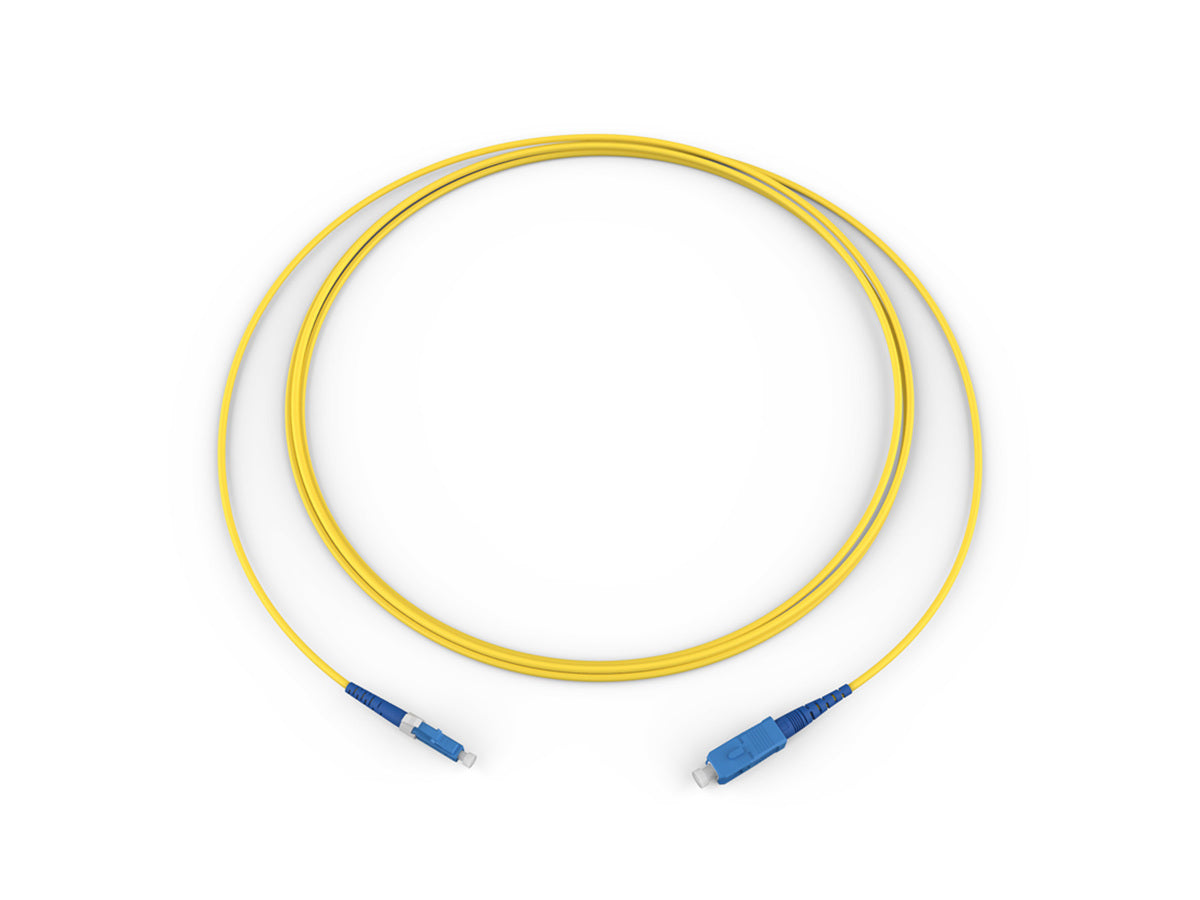

Fiber Optic Jumper 1F LC to SC Tight-Buffered Cable 2.0 mm Standard LCUPC-SCUPC Simplex SM SMF Yellow Jacket 2 Meters Corning 025801R2131002M
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | LSZH™/FRNC |
| Length | 2 Meters (6.56 ft) |
| Cable Assembly Type | Plug & Play™ Harness |
| Application | Vertical Riser, General Building Applications |
| Cable Type | Tight-Buffered |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Part Number |
025801R2131002M |
Connectors A & B
| Connector Type |
A: LC B: SC |
| Reflectance, Typical | ≤ -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
Description
Simplex cable assemblies are offered with a variety of connector combinations. Connector options include LC, SC, FC, and ST® Compatible. RoHS-compliant cables with riser-rated jackets are available in 3.0 mm, 2.0 mm, 1.6 mm, and 900 µm.
Features and Benefits
Flame-retardant jacket
Rugged and durable
Superior Performance Testing
Every termination is tested to ensure the highest network performance
State-Of-The-Art Manufacturing Processes
Corning's proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
Corning advantage
Integrated developer and manufacturer of cable, connectors, and fiber to ensure overall cable assembly performance.
Download PDF Spec Sheet
