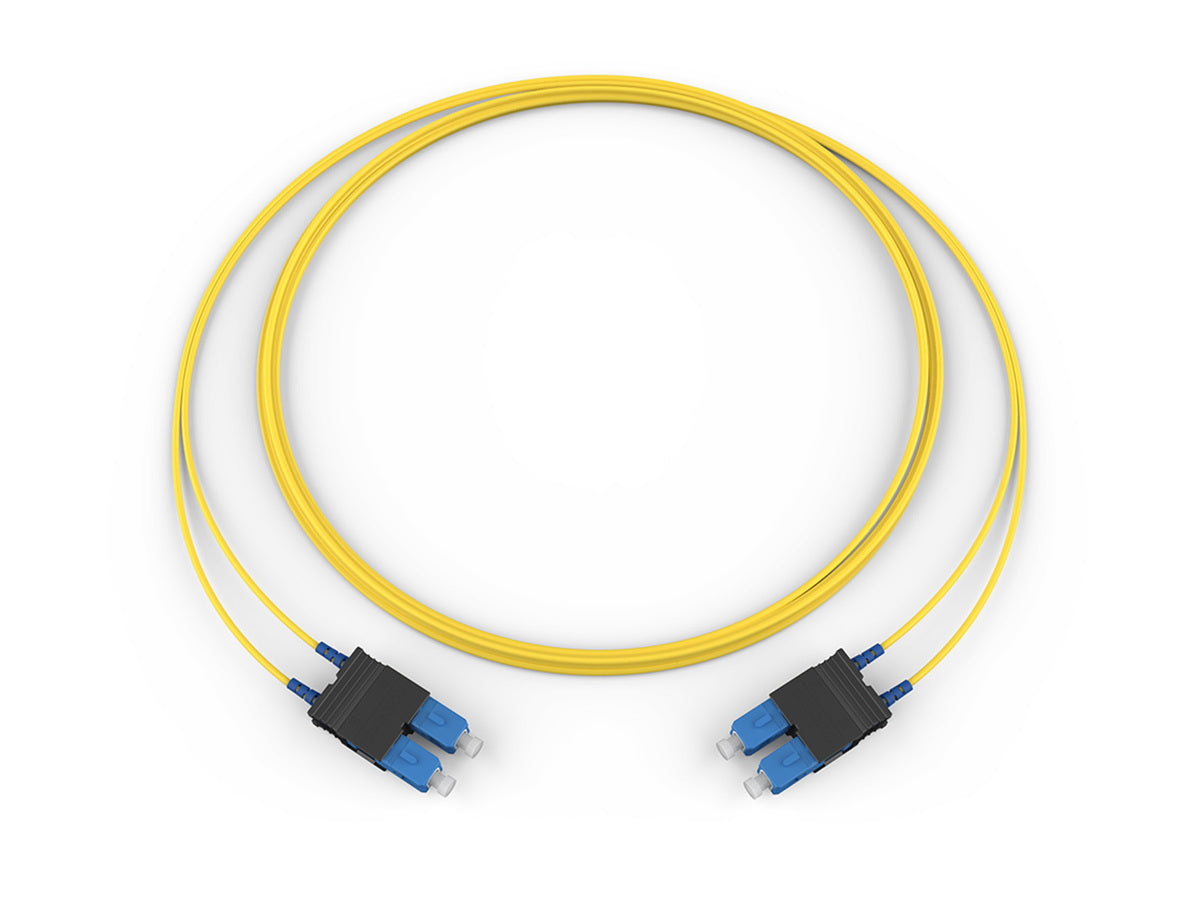

Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard SCUPC Duplex SM CORNING 727202G5120002M

Name: Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard SCUPC Duplex SM CORNING 727202G5120002M
Brand: Corning
SKU: 727202G5120002M
Price: 30.0 USD
Availability: InStock
Rating: 4.9 (8668 reviews)

Roll over image to Zoom

Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard SCUPC Duplex SM CORNING 727202G5120002M

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: 727202G5120002M

Select a Variant

Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard SCUPC Duplex SM CORNING 727202G5120002M

Availability: In stock

Price:

Regular price: $30.00
Sale price: $30.00

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

General Specifications

Product Number	727202G5120002M
Application	Vertical Riser, General Building Applications
Cable Type	Tight-Buffered
Flame Rating	Riser (OFNR)
Cable Assembly Type	Two Fiber

Design

Fiber Count	2
Outer Jacket Color	Yellow

Optical Characteristics

Fiber Code	G
Fiber Type	Single-Mode Ultra-Bendable Fiber
Fiber Compliance	ITU-T G.652.D and ITU-T G.657.A1
Fiber Core Diameter	8.2 µm
Maximum Attenuation	0.4 dB/km/0.4 dB/km/0.3 dB/km
Serial 1 Gigabit Ethernet	5000 MHz*km / - / -
Serial 10 Gigabit Ethernet	10000 MHzkm / - / 40000 MHzkm
Wavelengths	1310 nm, 1383 nm and 1550 nm
Fiber Category	OS2

Dimensions

Length

2 m (6.56 ft)

Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard SCUPC Duplex SM CORNING 727202G5120002M

Description:

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS-compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available. Additional detailed fabrication images are available in the Cable Assembly Family Specification Sheet.

Features & Benefits:

• Flame-retardant jacket

• Superior Performance Testing

• State-Of-The-Art Manufacturing Processes
