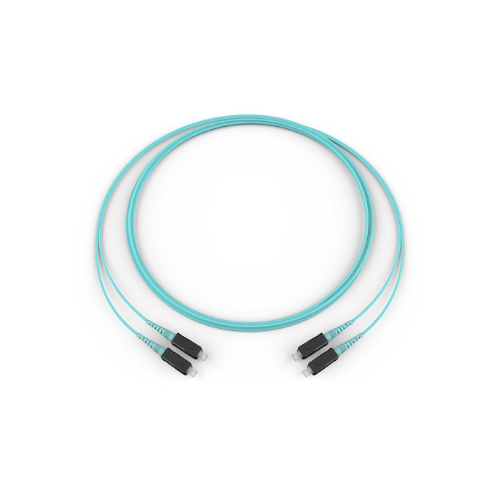

3 Meters Fiber Optic Jumper 2F Zipcord Riser Standard Aqua Jacket 393902T5116003M

Product Information

Specification

About :

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.

Specifications :

Product Number : 393902T5116003M
EAN Code : 4056418607887
Flame Rating : Riser (OFNR)
Fiber Category : 50 µm MM (OM3)
Cable Assembly Type : Two Fiber
Application : General Building Applications,  Vertical Riser
Cable Type : Tight-Buffered
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Insertion Loss, Typical : 0.35 dB
Boot Color : Aqua
Connector Type : SC
Ferrule Material : Ceramic
Housing Color : Black
Housing Material : Composite
Leg Diameter : 1.6 mm (0.06 in)
Plug Type : Heat-shrink sleeve
Plug Height : 4.8 mm (0.19 in)
Plug Width : 3.1 mm (0.12 in)
Plug Depth : 25.4 mm (1 in)
Leg Length : 254 mm   -0 / +38.1mm (10 in   -0 / +1.5in)

Features :

• Rugged and durable

• Every termination is tested to ensure the highest in network performance

• Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency

• Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
