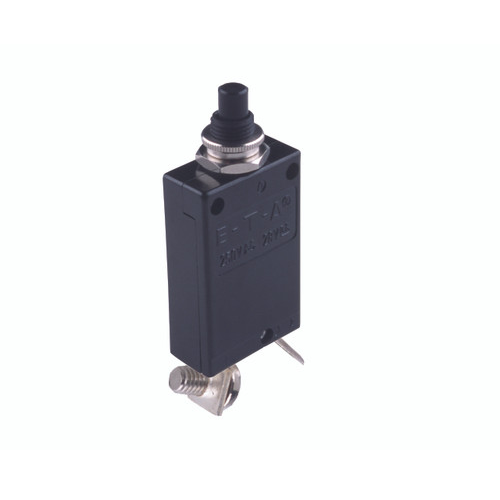

Thermal Breaker Type 2-5700 for Panel Mounting

Product Information

Specification

Thermal Breaker Type 2-5700 for Panel Mounting

Also Known As:

Panel Mounting , Type 2-5700, Thermal Breaker, Marine Use

About:

Panel mount thermal breakers type 2-5700 are designed to protect against overcurrent. They do this even in the toughest marine environments the sea has to offer. These single pole, high-quality breakers are ideal for use in marine applications, household appliances, and transportation. They are even utilized in power supplies, commercial appliances, and more. These breakers are known for their durability and longevity making them the perfect choice for marine applications. Choosing the correct breaker is not a simple choice.

Features:

• Threadneck panel mounting
• Push-push switch/circuit mechanism
• Approved to CBE standard EN 60934 (IEC 60934)
• Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism

Applications:

• Marine
• Transportation
• Power Supplies
• Telecommunication
• Household/commercial appliances

Specifications:

• Type : Thermal
• Manufacturer : E-T-A
• Life : 5000 Operations
• Terminals: Screw Terminals
• Current Rating : 5 - 30 Amps
• Max Volt Rating : 250-V AC or 28-V DC
• Interrupting Capacity (UL 1077) : 2000 A @ 250 VAC, 2500 A @ 50 VDC
• Part No : ETS45
