14 AWG 2 Conductor Zip Cord Wire
Also Known As:
Zip Cord Wire, DC circuits Wire, Trailer lights Wire, Low voltage lights, quick installations Wire
About:
14 AWG Zip cord is ideal for use in low voltage lights and DC circuits. They are perfect for situations where conductors need to be routed quickly. This wire is perfect for quick installations and easy runs. What colors are available Well, in two conductor zip cord, one of the conductors will always be black. In 14 AWG Zip Cord, the available colors are red and black, grey and black, or blue and black. What is this wire made from 14 AWG Zip cord is made from annealed bare copper primary wire (Type II). This type of wire is used for is conductivity. The insulation on the wire is color coded for easy identification. This insulation is also flexible to make the installation process easier.
Standards:
• Temperature Range: -20 °C to 105 °C
• Voltage Rating: 60 V
Applications:
• Low voltage lights
• Trailer lights
• DC circuits
Features:
• Annealed stranded bare copper (Type II)
• Color coded parallel bonded wire conductors
Specifications:
• AWG: 14
• No. of Conductors: 2
• Conductor Stranding: 19/0.0147

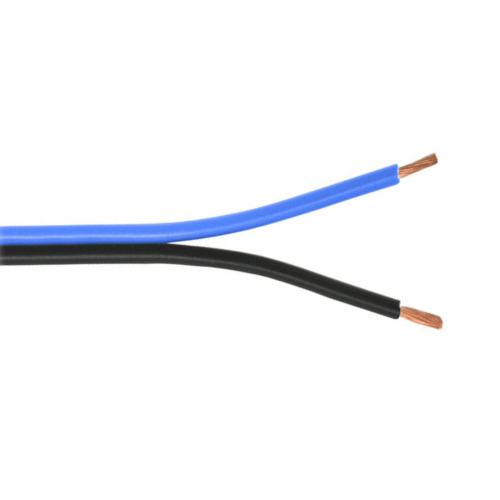

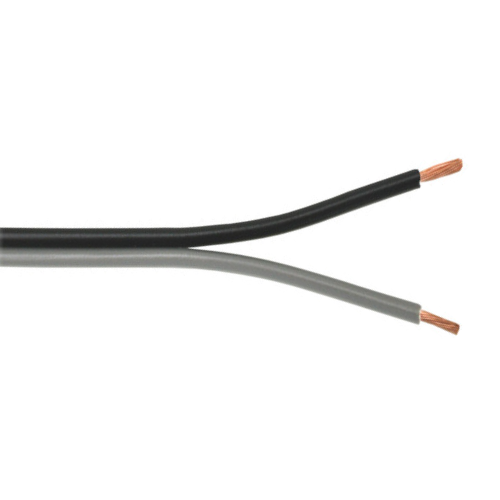

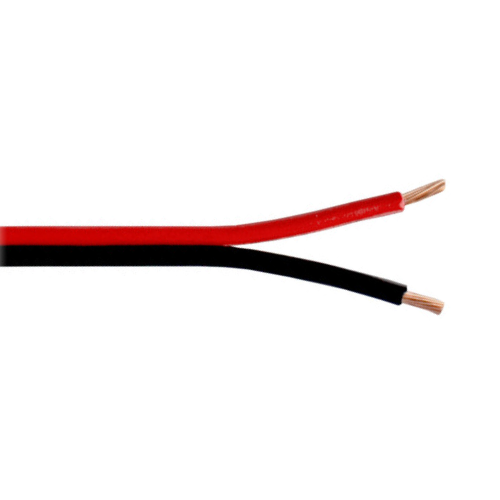

• Conductor Colors: Black/Red, Black/Grey, Black/Blue
• Part Number: WB14BK
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
