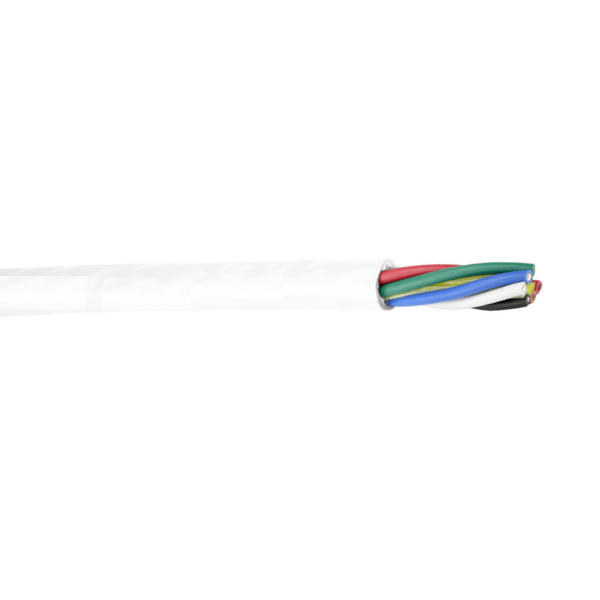

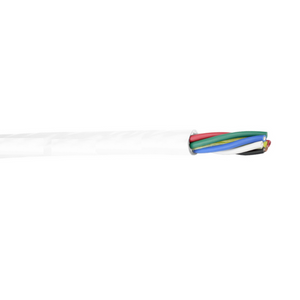

14 AWG 6 Conductor White Jacket Round Boat Cable
Also Known As:
Round Boat Cable, Highly Flexible Cable, Multi Conductor Cable, White Jacket Cable, Flatter Cable, Marine Cable
About:
Round boat cable is the ideal choice for installation in tight spaces like boat hulls. One reason it works so well is the fact that it bends in any direction. With other, flatter cables, your range of motion is more limited. All round boat cable is manufactured in Sarasota FL, USA. manufactured 14 AWG round boat cable is UL approved. It has tinned copper conductors which are resistant to corrosion. This boat cable is the perfect multiconductor boat cable and is easy to install for multiple reasons. First, it is made from Type III finely-stranded tinned copper conductors. Next, it possesses a high-quality flexible PVC insulation. Finally, the round shape of this multiconductor boat cable makes it easy to bend in any direction. These all come together to make this boat cable the easiest to install in tight workspaces. It also withstands the frequent flex and vibration commonly associated with marine conditions. 14 AWG round boat cable is available in 2, 3, 4, 6, 9, or 12 conductors. boat cable is the perfect choice for many marine jobs. It's ideal for running through sailing spars, poling platforms, and t-tops. Additionally, it is the ideal choice for small hulls or other confined spaces.
Applications:
• round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles
Construction:
• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture
Standards:
• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
Features:
• Type III, stranded, tinned copper conductors
• Highly flexible
• Easy to install and organize
• Easily sealed through bulkheads
Specifications:
• Size AWG: 14
• No. of Conductors: 06
• Conductor Stranding: 41/0.0100
• Jacket Thickness: 0.045 Inch
• Nom. O.D. : 0.530 Inch
• Jacket Color: WH
• Conductor Colors: 6 conductor - BK, BR, RD, GN, BL, WH
• Part Number: NNCWR14/6G
