Terminal Blocks Wire Ferrule (Pack of 100)

Product Information

Specification

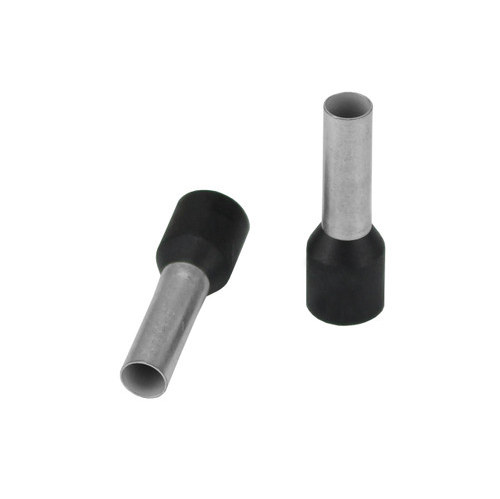

Terminal Blocks Wire Ferrule

Also Known As:

Wire Ferrule, Terminals & Connectors, Electrical Insulation

About:

Wire fraying can present a problem when dealing with IEC (European) style terminal blocks. As the wire frays, the connection becomes weaker and the problem has to be addressed. But all that can be prevented. How By using wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks. How do you use Wire Ferrules The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important as without the proper pressure the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, you can add heat shrink for added protection if you choose. Selecting the correct wire ferrule isn't always an easy task.

 Specifications:

• Wire AWG: 22-2
• Ferrule Length : 6mm - 16mm
• Heat Shrinkable :8mm - 18mm
• Part Number: TFRL
