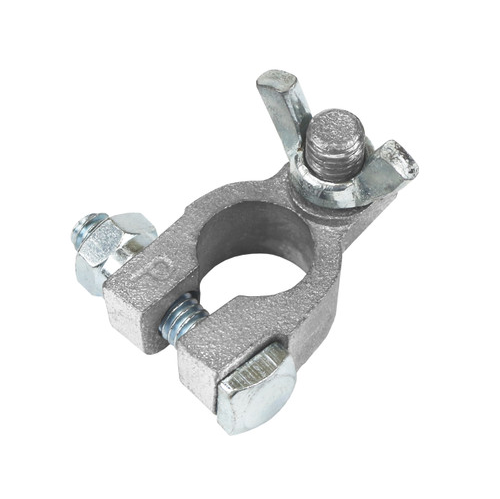

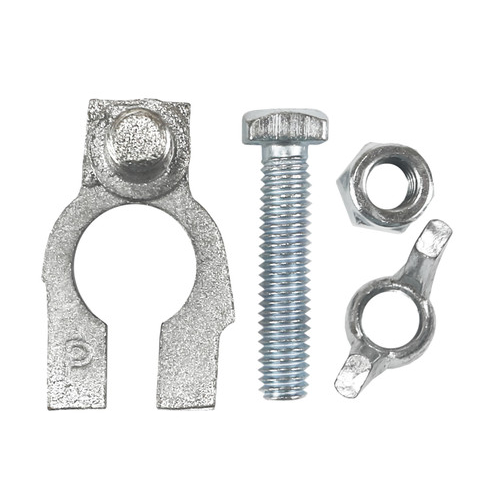

Marine Type Negative Top Post Terminal

Product Information

Specification

Marine Type Negative Top Post Terminal

Also Known As:

Marine Terminal, Electro-plated, Bright Tin, Positive Terminal, 131 Contact Copper

About:

Marine Type Top Post Terminals are ideal when connecting more than one cable to a battery post. Each terminals is cast with 131 contact copper. Using 93% to 95% of copper eliminates potential liability. It also eliminates the cost associated with products containing lead. These marine type top post terminals are electro-plated with a bright tin finish. Each one has raised letters indicating post type. This makes identification seamless and easy. For extra corrosion protection, a layer of epoxy is added to the surface of the nuts and bolts. This epoxy coating also maintains consistent torque as well as galvanic protection. How do you use marine type top post terminals The first step is to strip all the cables you will be using to the proper length. Connect the marine type top post terminal to the battery post and make sure it is securely attached. Terminate your cables with ring terminals, preferably heat shrink terminals. Now, you simply attach the ring terminals to the marine type top post terminal and you're done. Selecting the correct battery post terminal isn't always an easy task.

Construction:

• RoHS compliant

Features:

• Tin plated, 131 contact brass
• High corrosion resistant ultra plating
• Converts top terminal battery post to accept ring lugs

Applications;

• Connects two in line battery cables to battery post

 Specifications:

• Terminal Style: Marine
• Material :131 Contact Copper
• Finish: Electro-plated, Bright Tin
• Part Number: TC-200-N
