600 Amp Power Bus Bar

Product Information

Specification

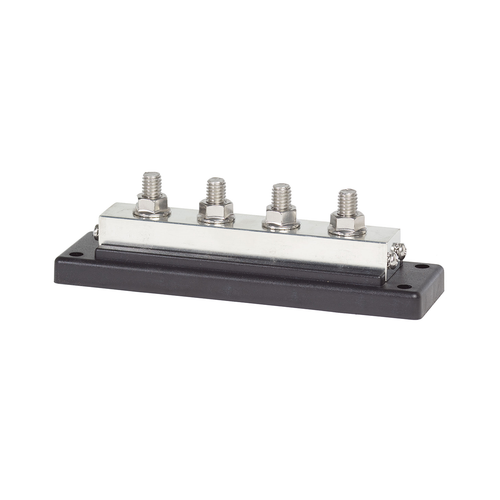

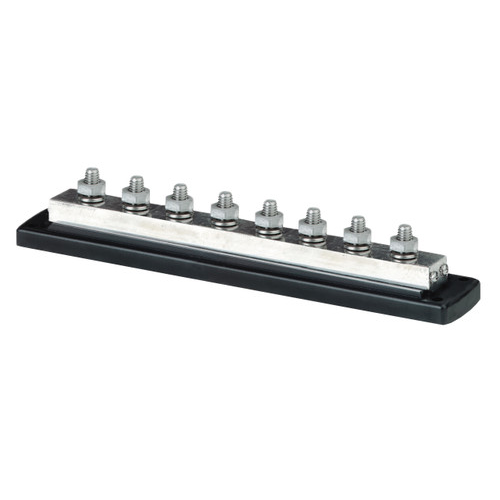

600 Amp Power Bus Bar

Also Known As:

Power Bus Bar, 600 Amp Bus Bar, Electrical Parts, Tin-plated copper

About:

Provides compact high amperage busing. Power bus bars are a unique high amperage power distribution bus. Constructed from tinned plate CDA110 copper with a reinforced polycarbonate base that allows lugs to be stacked and (4) #8-32 screws allow for easy connection of smaller conductors. For use with Power Bus Bar Covers.

Features:

• 600A DC - 545A AC continuous rating
• 48V Max DC
• 300V Max AC
• Bus Material: Tin-plated copper CDA 110/UNS11000
• UL94-V0 rated base material resists high heat
• Rasied bus provides easy access to multiple wires on a single screw or stud
• Four #8-32 screws located at the end of the bus allows for easy small gauge wire connections

Specifications:

• Max DC : 48V
• Max AC : 300V
• Number of Screws : 4 - 8, 3/8
• Part No : EPB
