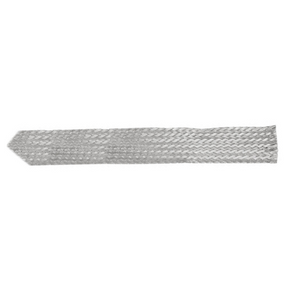

5/8" Tinned Copper Flat Braided Cable
Also Known As:
Tinned Copper Braided, Flat Braided Cable, flexible Cable, Battery Grounding Cable, ground strap
About:
Tinned braided copper, also known as flat braid, is a tight weave of soft drawn tinned copper wire. Originally, it is made as a tube, which is then rolled flat to create a specific width. What is a braided cable? A braid is a tubular sheath which is created from strands of braided wire that are woven together. The strands in the cable range from tens to even hundreds of separate strands. When would you use a 5/8" flat braid cable? Well, it has quite a wide range of uses which is why it is a popular choice in many industries. 5/8" Flat braid cables are popular for use as a radio frequency grounding strap. They are also used to shield wire bundles. It is an excellent choice when used as a low impedance ground path. It is even used as a strong connection between larger components. To make this product better, 5/8" flat braid cable is extremely flexible. The tinned copper conductors are easy to use. This makes it an ideal choice for handling marine conditions.
Applications:
• Battery Grounding
• Bonding strap for aircraft, vehicles, marine equipment
• Eliminates ignition interference.
Features:
• Soft Annealed tinned copper braid, tightly woven
• Low resistance way to create a point-to-point ground strap
Specifications:
• Strand AWG: 36
• Approximate AWG Equiv.: 10
• Construction : 48x8x36
• Nom. Circular Mils : 9600
• Approximate Current Cap. (Amps): 53
• Part Number : M.625FB
Download PDF Spec Sheet
