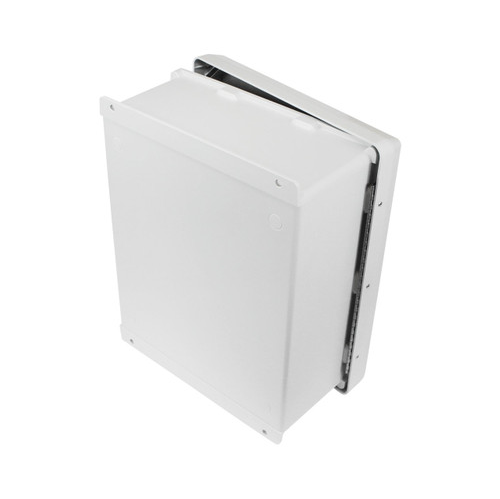

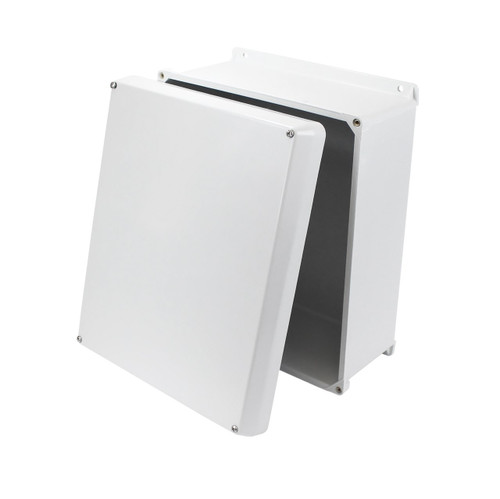

16 x 14 Electrical Enclosure

Product Information

Specification

16 x 14 Electrical Enclosure

Also Known As:

Electrical Enclosure, 16 x 14 Electrical Enclosure, Enclosures and Boxes

About:

Enclosures are built to encase wire connections and protect them from short circuits. Using enclosures can contain or even prevent fires in an electrical system. Pacer's enclosures 16 x 14 are made with the marine environment in mind. This enclosure has outside dimensions of 17.32" x 15.32" and is 6.65" deep. It is made in accordance with the Joint Industrial Council (JIC)-USA. The mounting plate used to install these enclosures is sold separately.

Features:

• Designed in accordance with the Joint Industrial Council (JIC)-USA
• Continuous gasket of polyurethane foam for optimal integrity
• Cover screw holes in corners are outside of gasket area
• All mounting hardware is made of 316 stainless steel
• The enclosure can be readily worked with conventional tools
• Withstands continuous temperature up to 150°C
• Aluminum mounting plates sold separately
• Junction boxes are sold with solid or clear covers

Applications:

• Indoor or outdoor use
• Junction boxes
• Electronic housings
• Push button stations

Specifications:

• Exterior Dimensions : 17.32" x 15.32" x 6.65"
• Interior Dimensions : 16.00" x 14.00" x 6.35"
• Part No : ENCL1614
